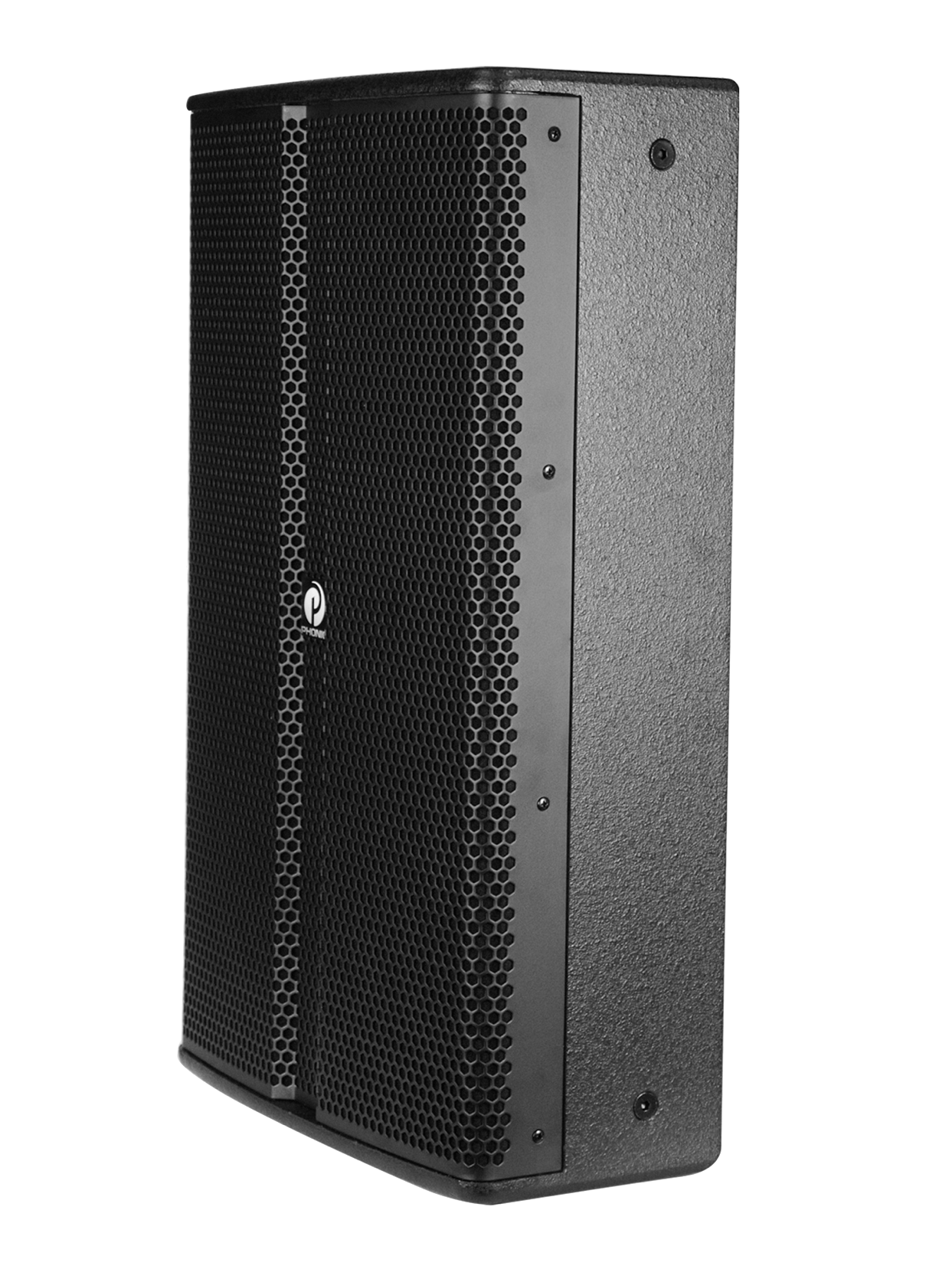

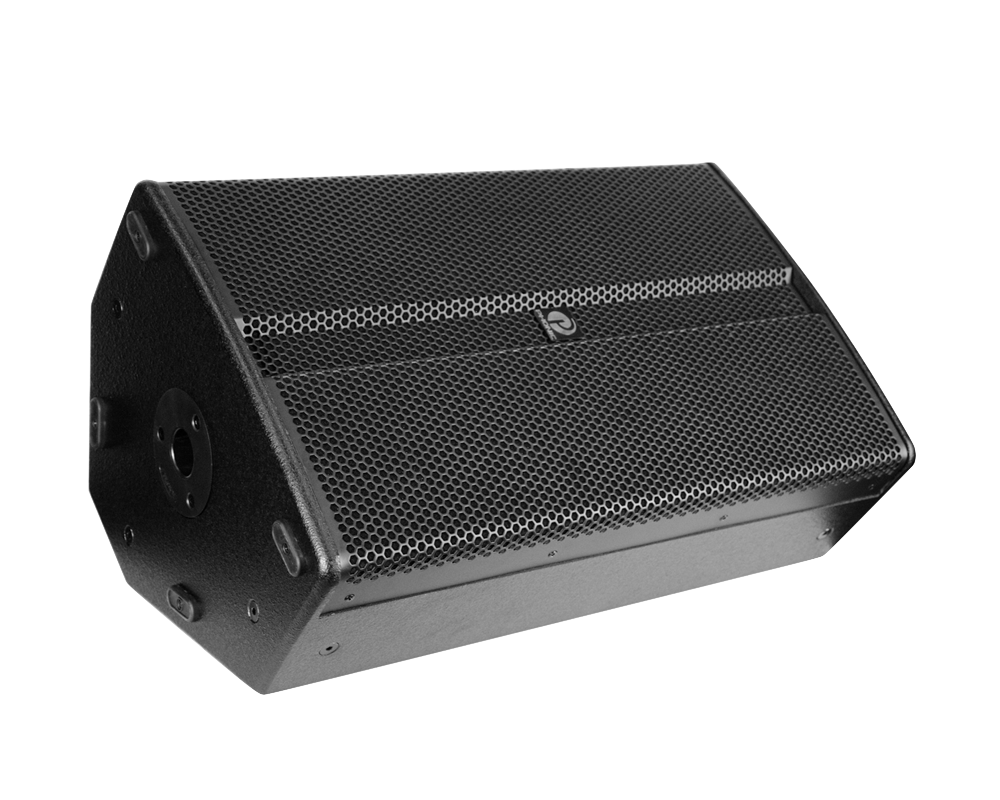

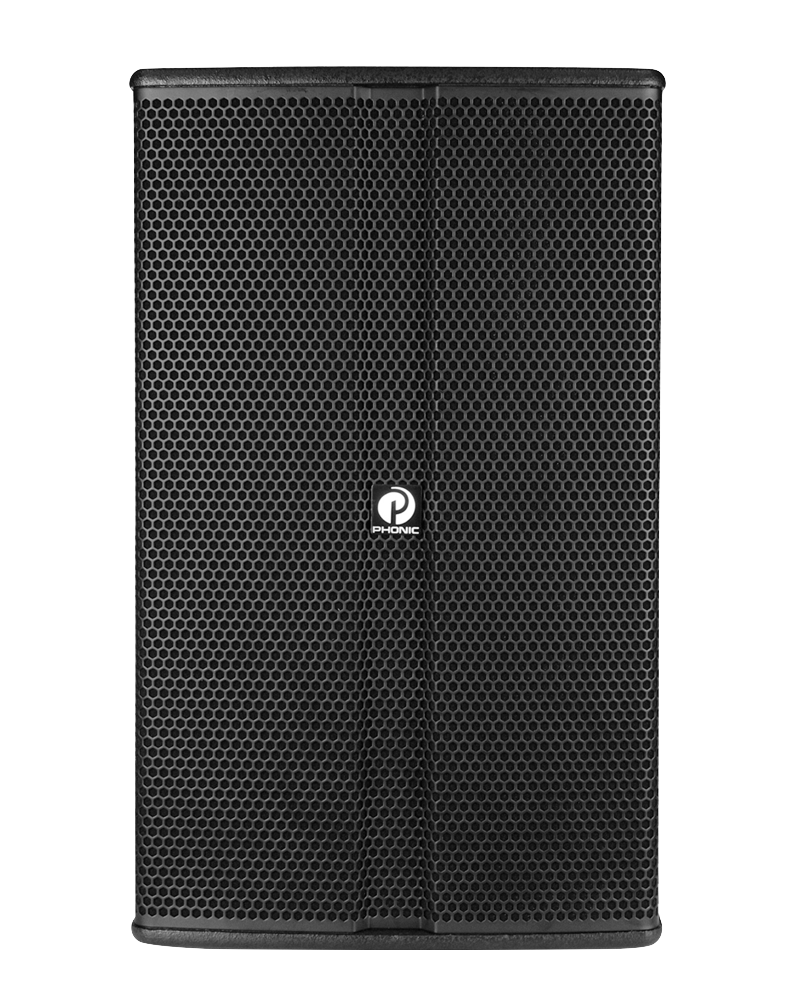

he MSK series is a completed full range speakers and Subwoofer, the multi-function enclosed designed for PA systems or stage, perfectly professional solution for a wide range of venues, including auditoriums, lecture halls, conference rooms, restaurants and LiveHouse bars.
MSK series include high quality 8"、10"、12" and 15" two ways speakers, and an 18" subwoofer. Built-in high- quality crossover provide linear and accurate phase response, with excellent sound distribution and high definition fidelity. Full-band speakers with HF OCPP protection (Over Current Passive Protection). The subwoofer cabinet design with SWR (Stationary Wave Reduction) to reduce internal standing waves. The customized LF driver unit provides excellent dynamic range, flat frequency response and very low distortion. It combines with a 1.74" (44mm voice coil) high-quality compression driver, and a rotating 90° x 60° horn for vertical and horizontal operation, It also provides superior sound quality and precise coverage at the highest sound pressure levels.
Specifications:
Model | MSK8 | MSK10 | MSK12 | MSK15 | MSK18B |
---|
Product type | Two Way Speaker | Two Way Speaker | Two Way Speaker | Two Way Speaker | Subwoofer |
Sensitivity | 98 dB | 98 dB | 98 dB | 98 dB | 100 dB |
Terminal | Speakon NL4 | Speakon NL4 | Speakon NL4 | Speakon NL4 | Speakon NL4 |
Drivers | 1 x 1.34” HF 1 x 8” LF | 1 x 1.34” HF 1 x 10” LF | 1 x 1.74” HF 1 x 12” LF | 1 x 1.74” HF 1 x 15” LF | 1 x 18” LF
|
Power Handling | 300W(Program) 600W(Peak) | 500W(Program) 1000W(Peak) | 600W(Program) 1200W(Peak) | 800W(Program) 1600W(Peak) | 1200W(Program) 2400W(Peak) |
Rigging Points | 12*M8 | 12*M8 | 12*M8 | 12*M8 | NA |
Color | Black | Black | Black | Black | Black |
Weight | 8 Kg | 13.5 Kg | 19 Kg | 20 Kg | 40 Kg |
