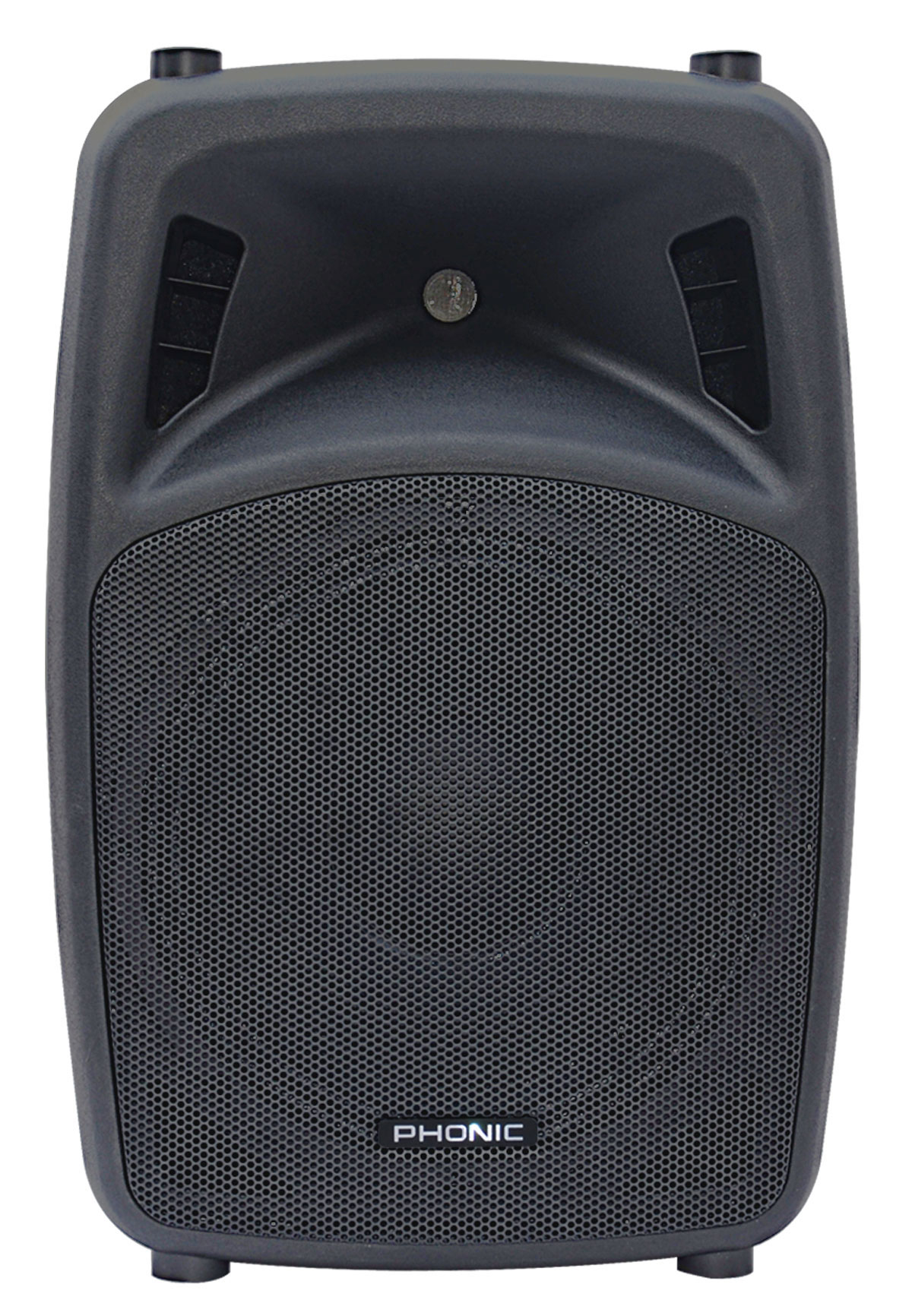

JUBI 12A DSP

12" ACTIVE LOUDSPEAKER WITH INTEGRATED DSP

Remarkable sound, remarkable power, and remarkable style in a lightweight, durable enclosure
Integrated digital signal processor offers main 3-band equalizer, 2-way crossover, full-range/subwoofer operating modes and 5 preset input modes
700 Watts of continuous power using Class AB and D technology
126 dB maximum sound pressure level
12" woofer matched with 1" titanium compression tweeter
Flat frequency response between 56 Hz and 20 kHz

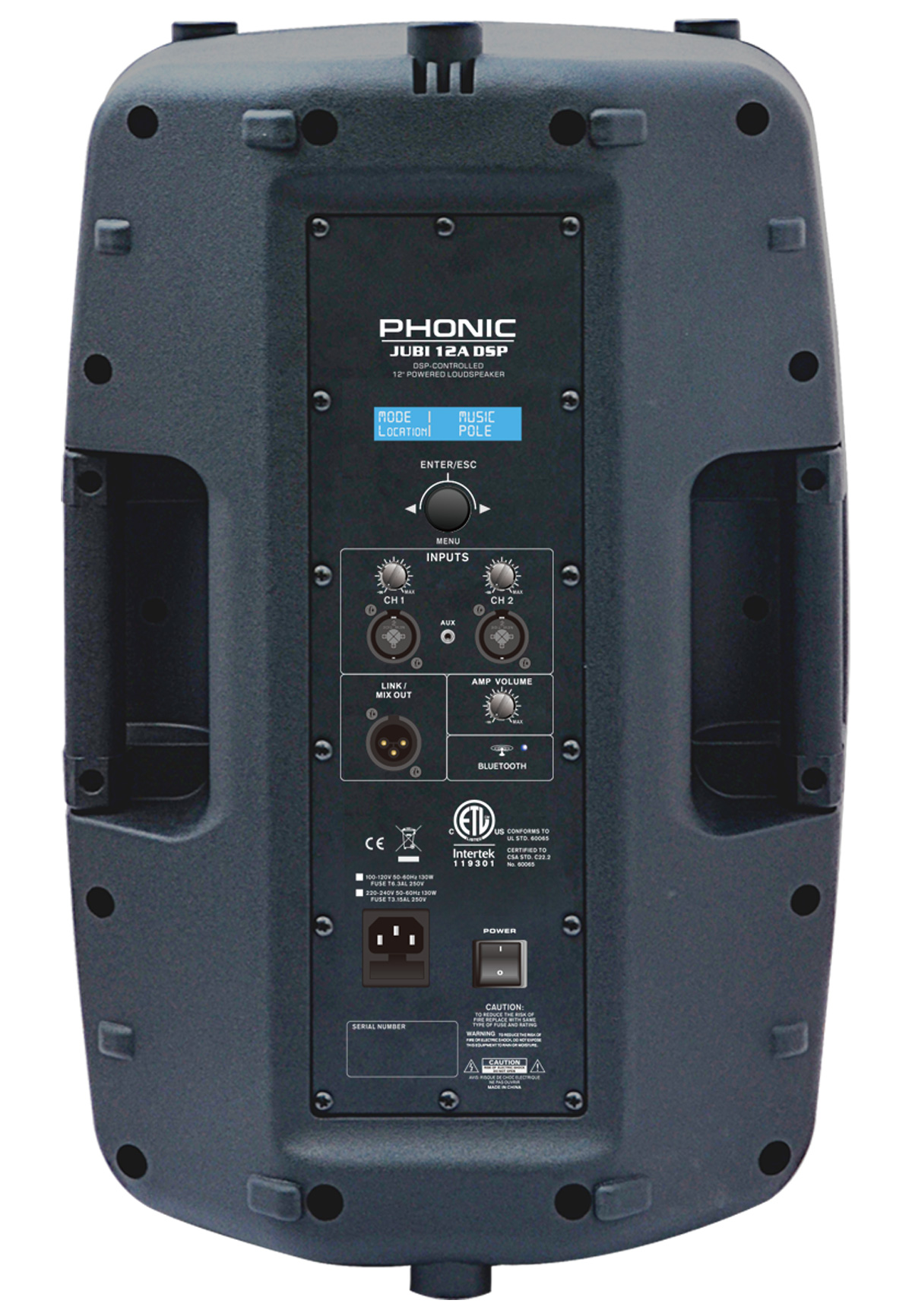

2 channel onboard mixer: both channels feature combo (XLR/TRS) inputs, channel 2 also features 1/8" mini-stereo
Send speaker's main signal off to additional speakers or amplifiers through a balanced XLR output connector
4th order phase-accurate Linkwitz-Riley crossover
35mm pole mount for extended audience reach
Impact resistant polypropylene enclosure with internal bracing
Tour grade steel grille (1.2 mm)

Phonic's Jubi 12A DSP establishes a new paradigm for molded powered speakers. Jubi DSP's 700 Watt (continuous) amplifier uses Class AB and D technology to produce a shattering 126 dB maximum SPL, providing enough power for a wide range of venue types and sizes. A lightweight design and rugged pole mounts make the Jubi the most versatile, portable active loudspeaker today. Phonic engineers designed a high BL force factor woofer and a 1" titanium compression tweeter to achieve the Jubi's astonishingly wide sound stage and a vivid, transparent signature sound. A carefully crafted polymer enclosure with stunning vertical curvatures not only look great, but also improve acoustic accuracy by minimizing internal diffraction. Finally, reliability and durability were the paramount factor throughout the Jubi's development. With 700 Watts of ground shaking power, a 2-channel on-board mixer, custom engineered transducers, and incredible versatility, the Phonic Jubi 12A DSP is a loudspeaker to be reckoned with.

Download

Data Sheet (English)
User's Manual (English / Español)
