AM 642DP

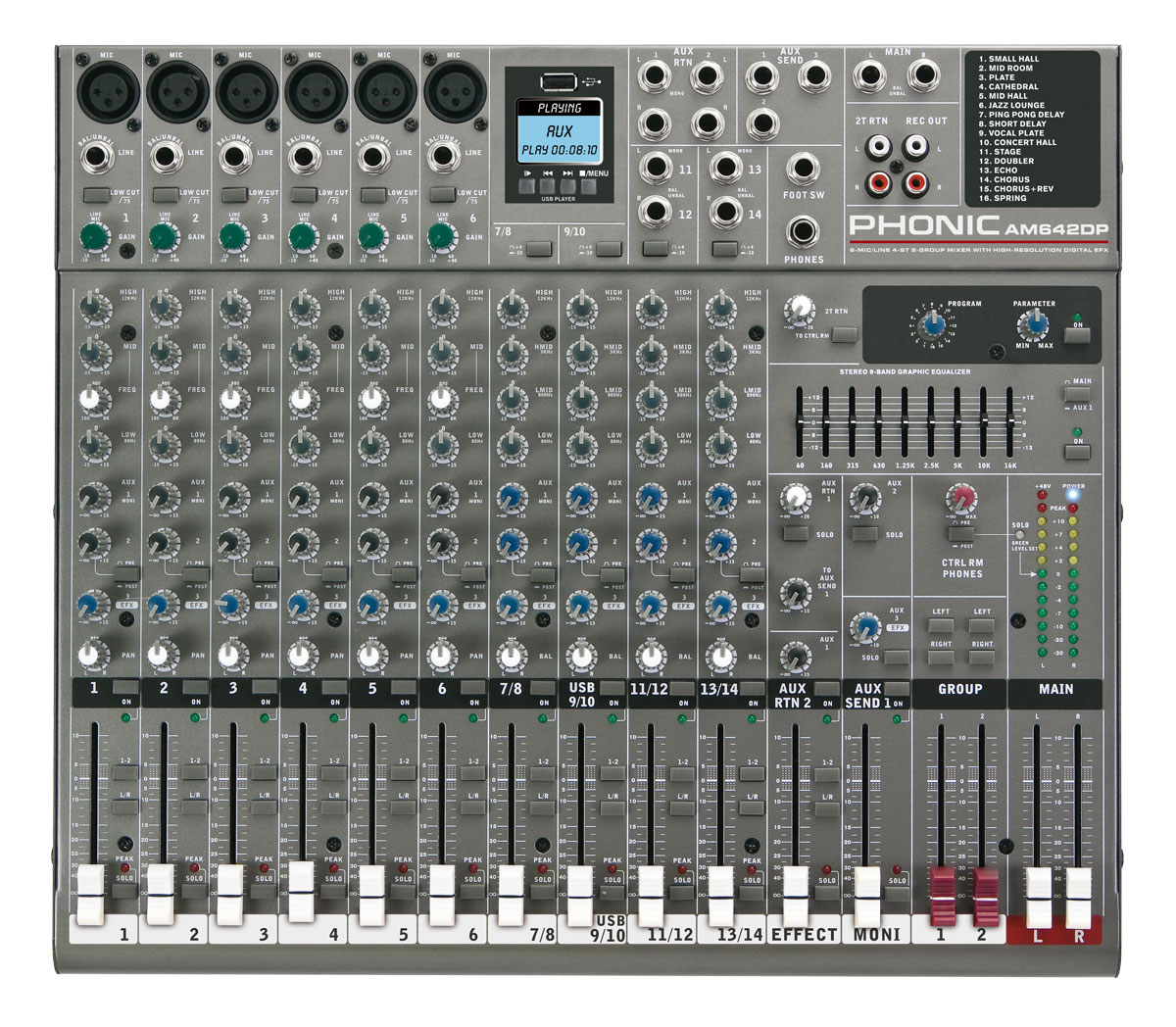

im-am642dp-front
DIS-product


AM 642DP

6-MIC/LINE 4-STEREO 2-GROUP MIXER WITH GEQ, DFX AND USB PLAYER

6 Mic/Line channels with inserts and phantom power
USB playback of MP3 and WAV files from any USB flash drive
4 stereo channels with 4-band EQ
3-band EQ with swept mid-range plus low cut on each mono channel
3 AUX sends, one with Pre/Post switch
32/40-bit digital stereo multi-effect processor with 16 + tap delay plus foot switch
Stereo 9-band graphic EQ, assignable to main mix or aux 1 send
2 true subgroups with main L and R routing switches
2 stereo aux returns with effect to monitor level control
Solo feature on each input and output
XLR connectors available on main L / R output
Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz
Rack-mounting kit included

The AM series of mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.
