AM8GE

im_am8ge_front

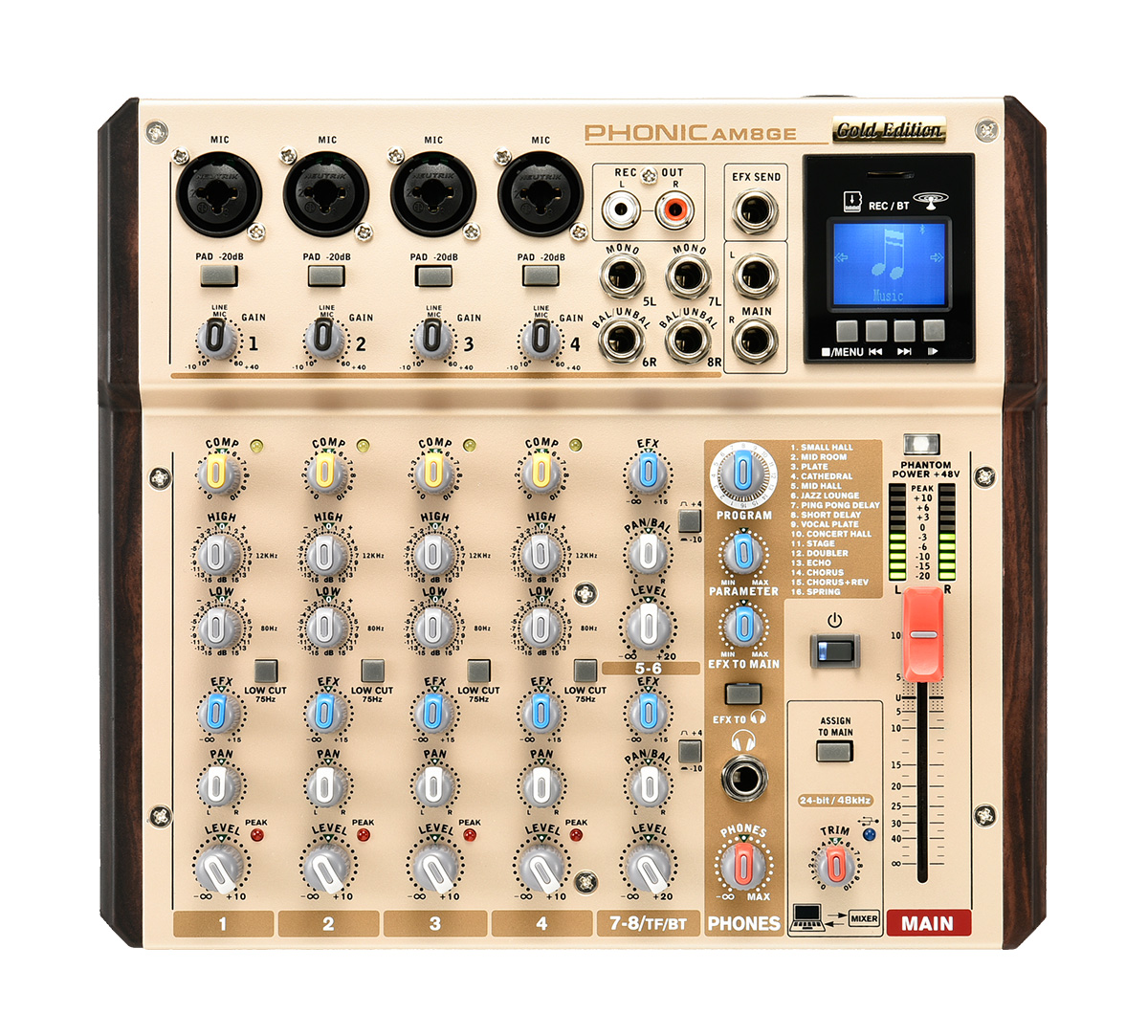

AM8GE

4-MIC/LINE 2-STEREO INPUT COMPACT MIXER WITH DFX, PLUS BT, TF RECORDER AND USB INTERFACE

Four mono mic/line Neutrik "Combo" channels with user-adjustable compressors
Two stereo channels with EFX, balance and level controls

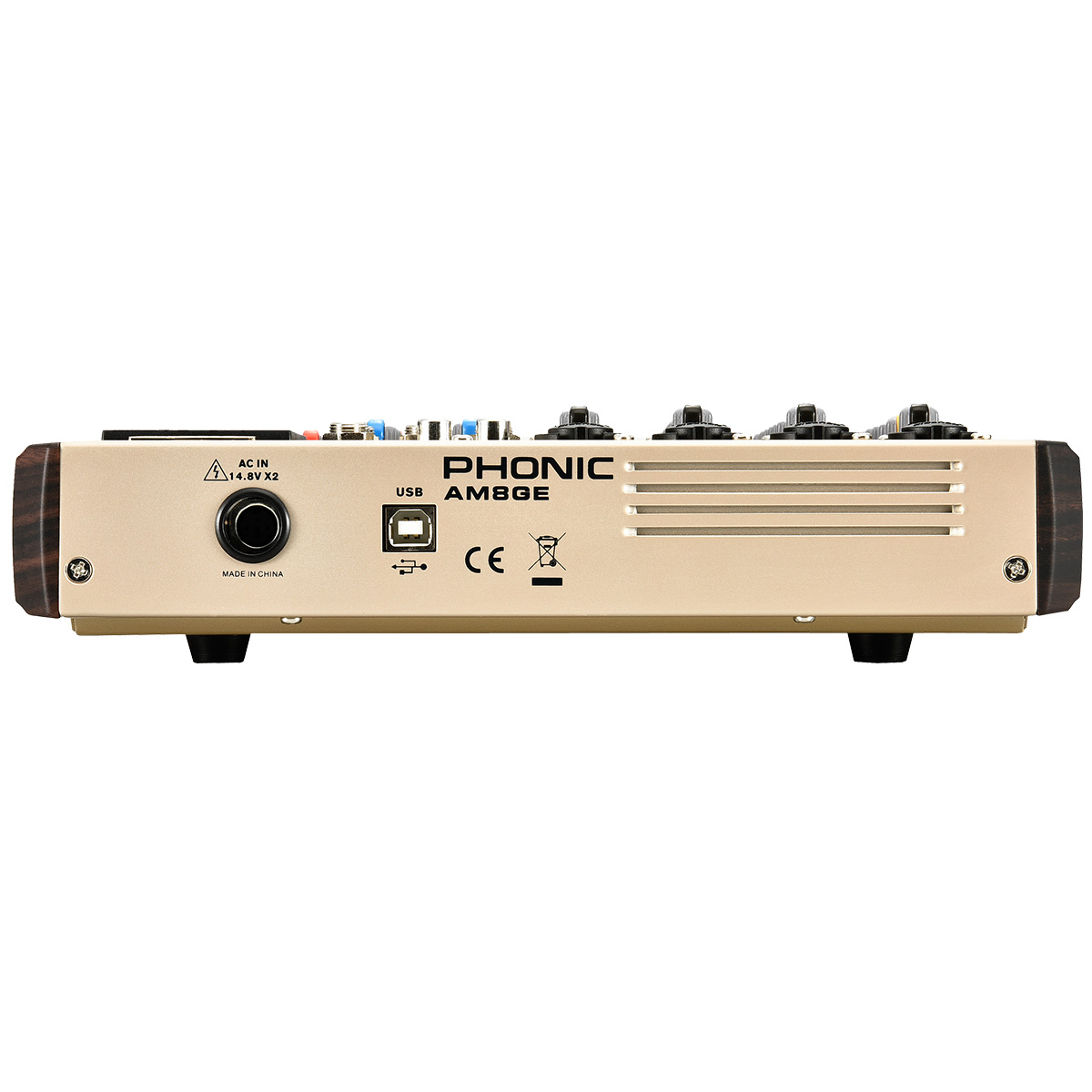

Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
Playback of MP3, WAV and FLAC files from TransFlash media
Internal TransFlash module for high quality stereo recording in WAV or MP3 formats
2.4GHz Bluetooth connectivity for streaming digital audio directly from smartphones and tablets
32/40-bit digital effect processor with 16 effect programs and one main parameter control
EFX send control available on each channel
75Hz low-cut filter and 2-band EQ on each mono channel
Peak and VU metering (10 segment)
+48V phantom power for microphone inputs
Phones source matrix for maximum monitor flexibility
EFX/AUX send cue for monitoring individual channel
Balanced main outputs with 60mm fader

Phonic's all-new Gold Editions of the classic AM series of mixers offer more ways to record your audio than ever before. We begin with a stereo USB interface for sending audio to and from any modern PC or Mac computer. This allows recording and/or playback of digital audio in quality far superior to the average compact disc (24-bit, 48 KHz). A superior onboard module is also included, offering both TransFlash (TF) recording and playback in addition to Bluetooth connectivity. The TF portion allows stereo recordings to be made in WAV and MP3 formats, providing phenomenal recording quality previously unavailable without additional, external equipment. Integrated stereo recording at its finest!

The AM Gold Editions still provide many of the analog standards. Ultra low-noise pre-amps ensure high quality sound when used in project studios or in sound reinforcement. Neutrik-brand microphone input connectors (both combo and XLR) are utilized for unparalleled audio while our advanced analog circuitry ensures your audio is handled with the utmost of care. The multi-band EQ on mono channels gives you total control over your audio. The AM Gold Editions also makes monitoring the mix easy with its dual multi-segment LED level meters, EFX to monitor control and high volume headphone outputs.

Download
