DMP1616 / DMP1616D

16x16 Digital Matrix Processor

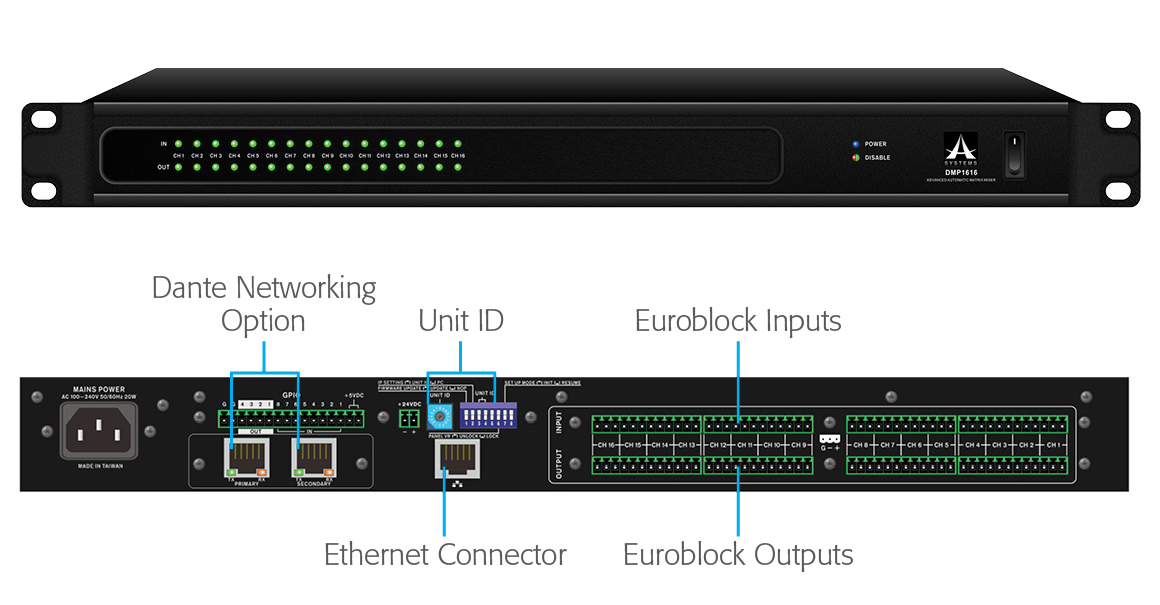

16 input channels via 3-pin Euroblock connections
16 output channels via 3-pin Euroblock connections
Ethernet connectivity for network control application
Automatic DHCP network IP configuration
Easy and intuitive control software from Asystems
User-accounts with multi-layer security
4-band parametric EQs and 31-band graphic equalizers
Autoleveler (Loudness Control)
Compressors and noise gates
Level ducking with trigger control
All signal processors flexible and user-controllable
40-bit floating point processor
Internal sampling selectable between 44.1 and 48 kHz
Optional Dante audio networking card

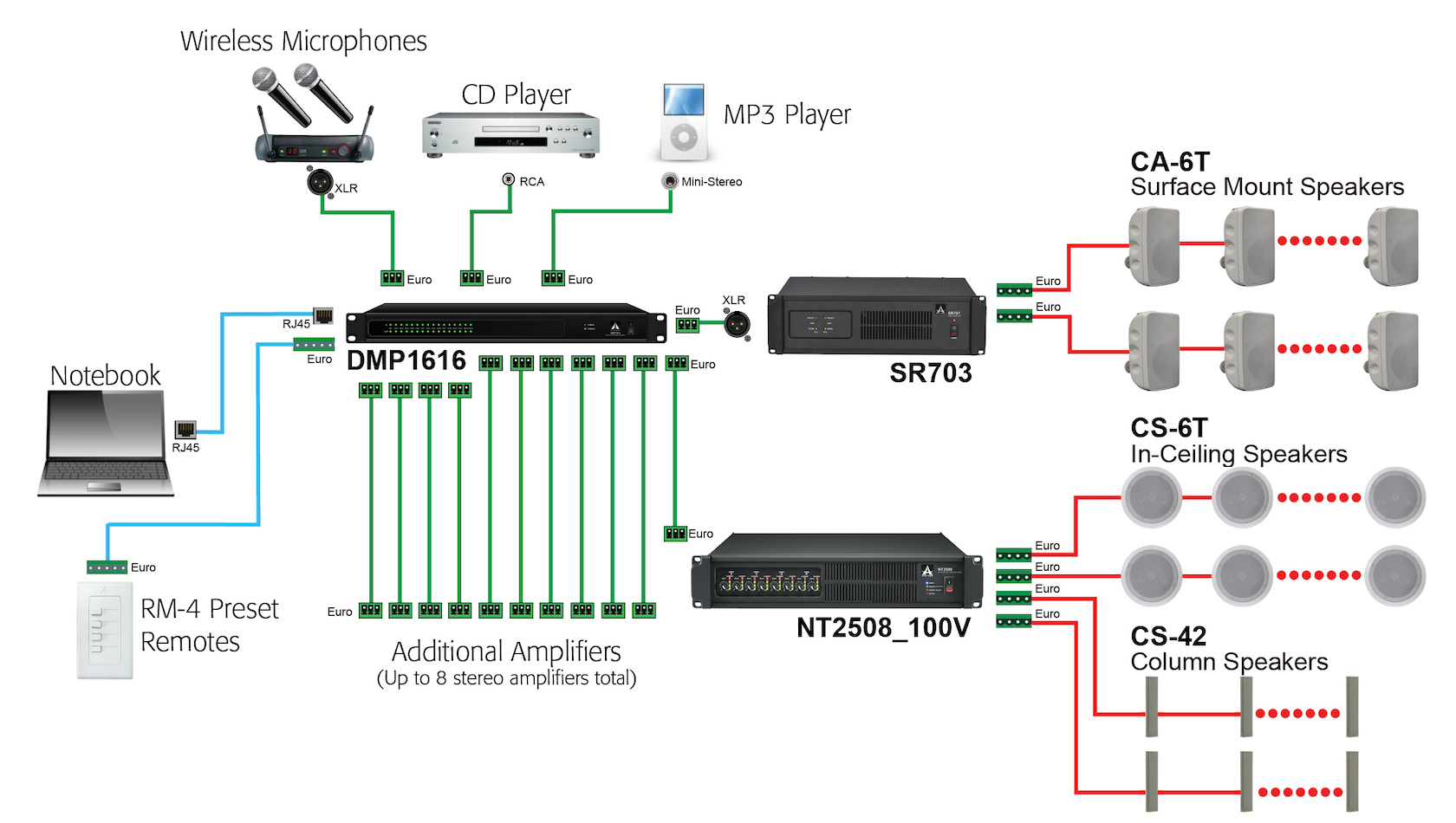

System Example: Hotel Lobby
System Example: Conference Room
