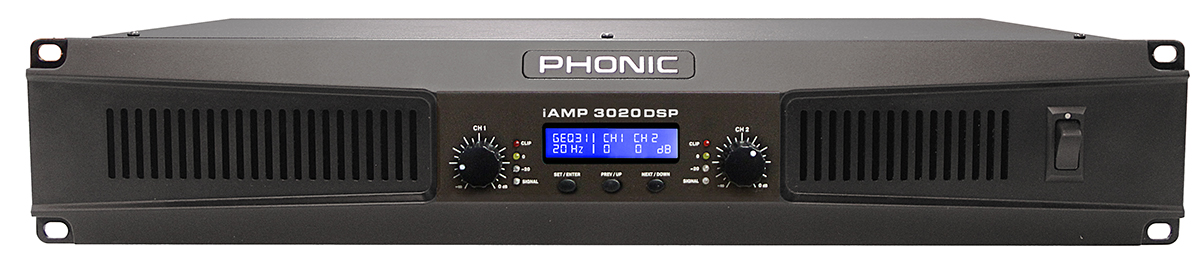

IAMP 3020 DSP

3000 WATT DIGITAL AMPLIFIER WITH DSP

Rated Power per channel at 2Ω: 1500 Watts
Rated Power per channel at 8Ω: 600 Watts
Combination XLR and 1/4" inputs
Speakon output connectors
Signal patch-thru 1/4" jacks on each channel
Lightweight design
Revolutionary class D topology
Internal DSP offering onboard speaker management tools
Up to 680 ms delay per channel
31-band graphic equalization on each channel
Adjustable Crossover with 4th order HPF and LPF
4 Variable-speed cooling fans for smooth operation
Protection circuitry prevents damage from short circuit, overheating, subsonic noise, RF interference and output DC offset
Detented front-panel level controls
Front-panel LED indicators and LCD display
High-responsive switching power supply
2RU-height and shortened back case

The Phonic iAMP offers digital amplification at its finest, providing 1600 to 3000 Watts of sheer power into loads as low as 2 ohms. The high-speed, high resolution class D circuitry works with the low-weight construct to create an amplifier strong enough for permanent installations yet light enough for portable sound purposes. Input to the iAMP is flexible, with the unit accepting both XLR and 1/4" balanced inputs via the onboard combo jacks, and Speakon jacks are provided for output to speakers. DSP versions feature an array of digital signal processing onboard, controlled through a simple interface and screen. The DSP features a complex algorithm offering compressor/limiter, 31-band graphic equalizer, speaker alignment delay and crossover with additional HCF and LCFs. All functions are easy to adjust on screen and can be saved directly to the amplifier for later use.
