PAA3X

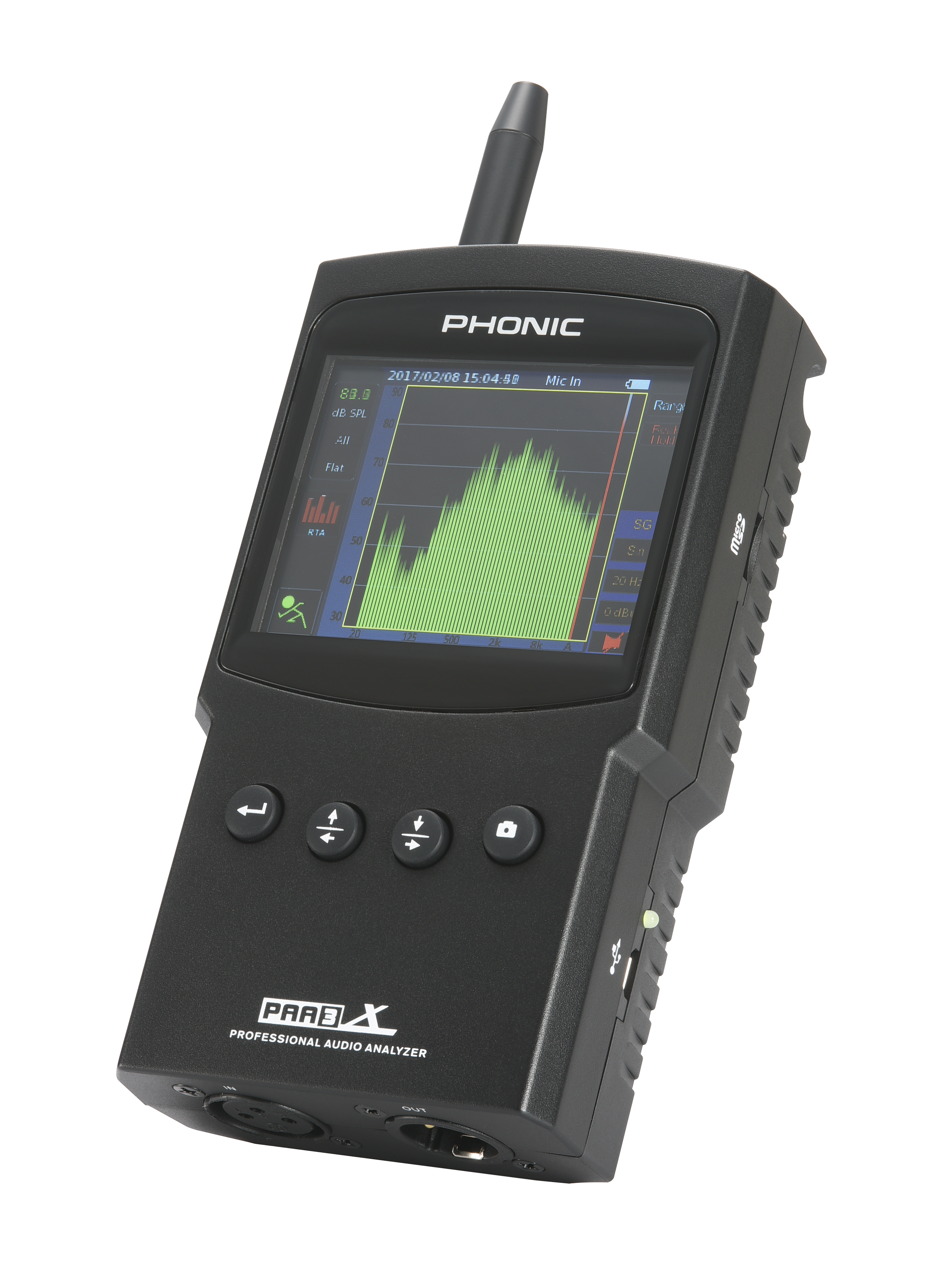

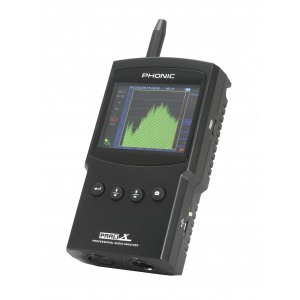

HANDHELD AUDIO ANALYZER

31-band and 61-band real time spectrum analyzer
Detachable calibrated measurement microphone
Includes 5m mic cable for remote placement of measurement mic, perfect for home theater and automotive application
SPL meter and level meter with three level range selections
Sound pressure level meter from 30 dB to 130 dB
Line signal measurement display in dBu, dBV, or Volts (AC)
Polarity function for checking phase of any loudspeaker
Snapshot button for instant screen captures saved to SD card
31-band and 61-band EQ setting value display (boost/cut)
Mic calibration possible through standard 94dB sound level calibrator (sold separately)
Signal generator with pink noise, sine wave, sweep wave and polarity test signal
A, B, C and flat weightings all available for measurements
Maximum level and peak hold display
Balanced XLR input and output connectors
Rechargeable lithium-ion battery

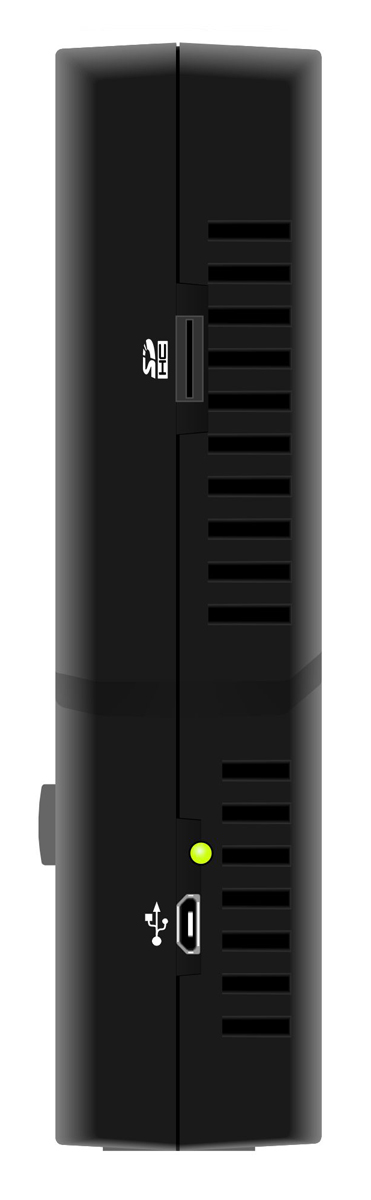

Micro USB port for charging battery
AC power adapter and USB cable included
Microphone holder included for flexible mic placement
Mic stand adapter included for versatile system placement
Includes SD card

The PAA3X is a highly accurate handheld audio analyzer that gives sound engineers a rich array of sound analysis tools. The system features both 61-band and 31-band real time spectrum analysis, RT60 reverb time measurement, SPL and line meter, internal signal generator, EQ setting program, microphone calibration and speaker phase checking abilities. All functions and menus can be accessed through a central jog dial, leaving your other hand free to adjust audio settings. The large color LCD screen has an adjustable brightness to help you see in a dark or well-lit environments alike. The PAA3X also features a "screen capture" function allowing users to save images of the screen to an SD card in BMP format for later reference. The detachable precision microphone can be placed remotely via the included 5-meter extension cable, offering flexible on-site operation management. With all this plus a built-in rechargeable lithium-ion battery, the PAA3X is a must-have multifunctional tool for all serious audio engineers.
