KX12

kx12

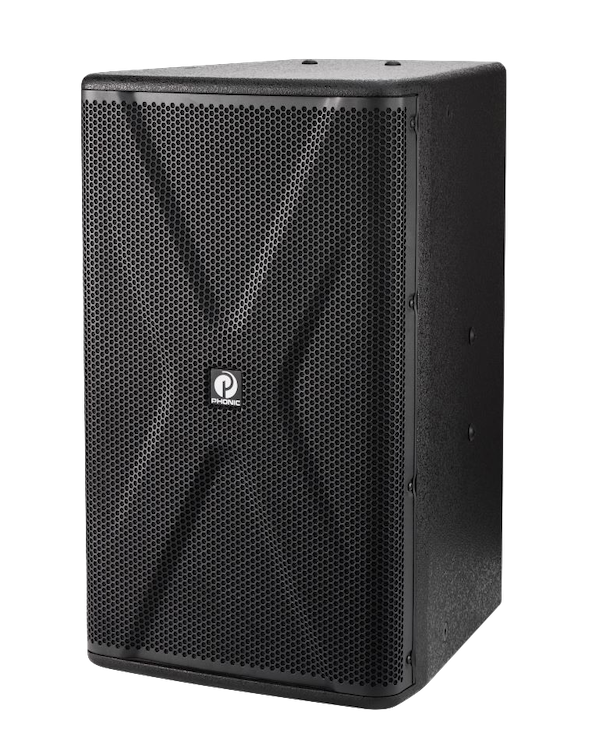

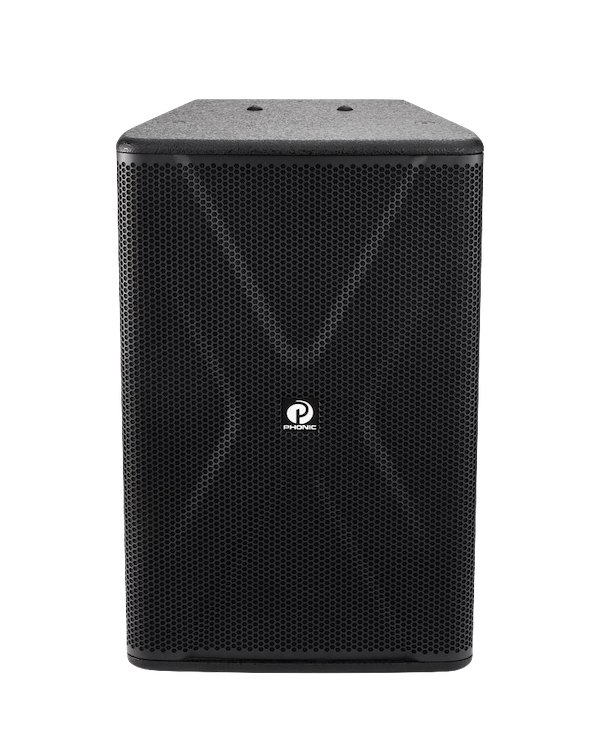

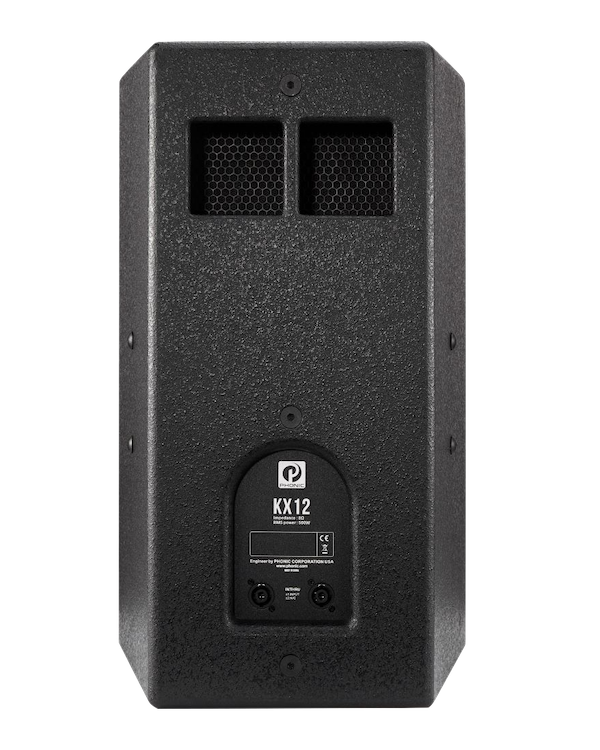

Phonic KX12

Full-Range Karaoke Speakers

12", 2-way, bass-reflex
45 Hz – 20 kHz
98 dB
8 Ohms
125 dB (131 dB peak)
500 / 1000 / 2000 W
100° x 90°
1 x 12" (3″ coil)
1 x 1.75"
2 x Speakon® NL4MP
19 x M10 threaded points
Black perforated steel
35 mm socket
Warnex texture paint
15 mm poplar plywood, trapezoid
600 x 360 x 410 mm (23.6 x 14.2 x 16.1")
22.3 kg (49.0 lbs)

The KX Series embodies 45 years of PHONIC’s expertise in professional audio engineering.
• • KX12: 12″ low-frequency driver with 3″ voice coil for deeper, room-filling lows
• Both models include a 1.75″ compression driver for clear, articulate highs
• Rotatable 100°×90° horn for customized sound dispersion
• Rear-ported cabinet enhances bass, especially near walls
• Durable 15mm poplar plywood construction with textured water-based paint
• Designed for permanent installations with versatile mounting options (ceiling, wall, stand, or satellite with subwoofer)

Download

KX_Full_Range_Speakers_en V1.3.pdf
KX_Full_Range_Speakers_cn V1.5.pdf
