KX 10

mx10

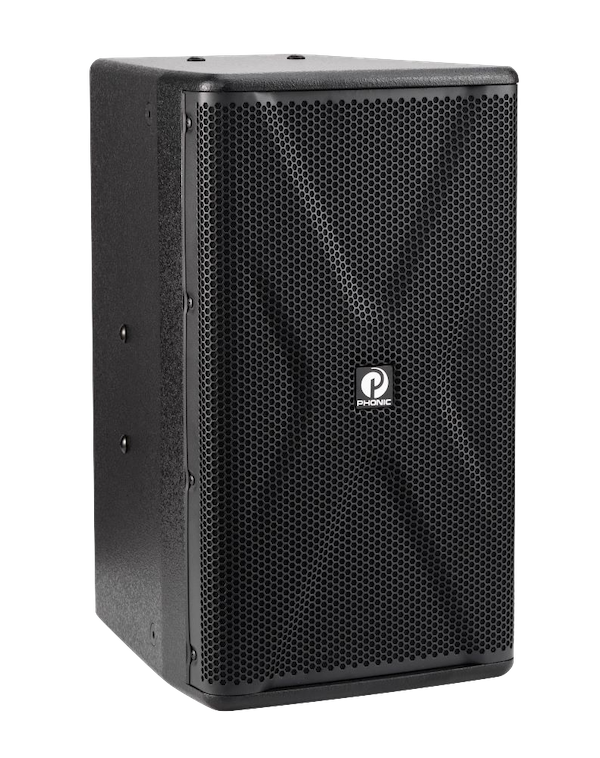

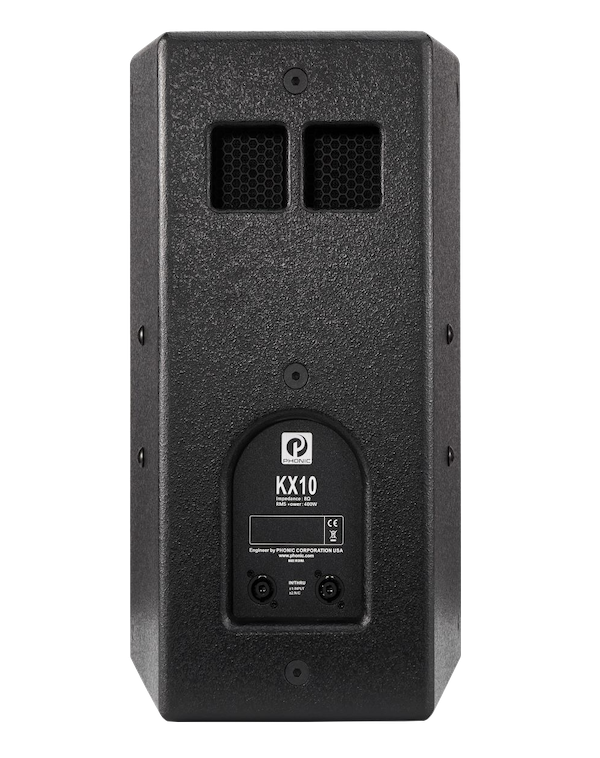

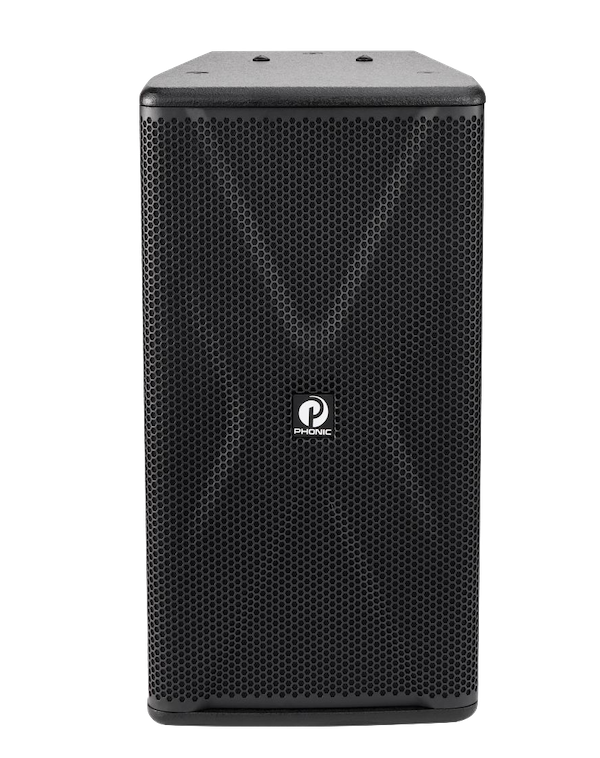

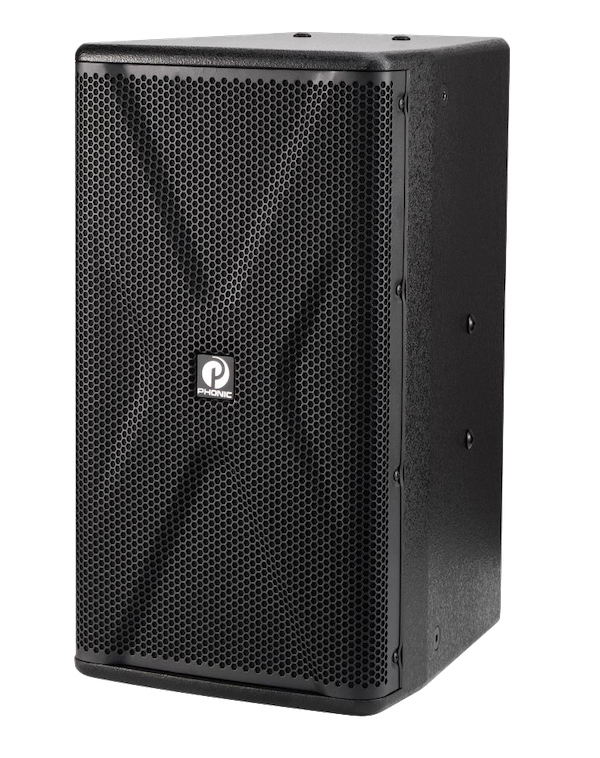

Phonic KX10

Full-Range Karaoke Speakers

10", 2-way, bass-reflex
50 Hz – 20 kHz
96 dB
8 Ohms
123 dB (128 dB peak)
400 / 800 / 1600 W
100° x 90°
1 x 10" (2.5″ coil)
1 x 1.75"
2 x Speakon® NL4MP
19 x M10 threaded points
Black perforated steel
35 mm socket
Warnex texture paint
15 mm poplar plywood, trapezoid
533 x 300 x 370 mm (21 x 11.8 x 14.6")
17.5 kg (38.5 lbs)

The KX Series embodies 45 years of PHONIC’s expertise in professional audio engineering.
• KX10: 10″ low-frequency driver with 2.5″ voice coil for tight, punchy bass
• Both models include a 1.75″ compression driver for clear, articulate highs
• Rotatable 100°×90° horn for customized sound dispersion
• Rear-ported cabinet enhances bass, especially near walls
• Durable 15mm poplar plywood construction with textured water-based paint
• Designed for permanent installations with versatile mounting options (ceiling, wall, stand, or satellite with subwoofer)

Download

KX_Full_Range_Speakers_en V1.3
KX_Full_Range_Speakers_cn V1.5
