KT8A

Line array design with variable curvature angles
8” woofer and 6.5” mid-range woofer with 2” voice-coils
1.4" compression tweeter with titanium diaphragm and neodymium magnets
Straightforward rigging system allows splay angles from 0° to 8°
120° x 10° constant directivity coverage angle
1136 Watt multichannel digital power amplifier
Onboard DSP for increased safety and application of signal processing
DSP features accessed through use of Phonic U-BOX adapter (sold separately)
PC user interface for control of volume, crossover, limiter and more (optional)
Exceptionally wide frequency response: 65Hz - 19KHz
Bass-reflex configuration for extended low-end response
Sturdy, multi-layer birch plywood construction with tough black coating
XLR input and link 'thru' connectors as standard
PowerCON AC power input/output

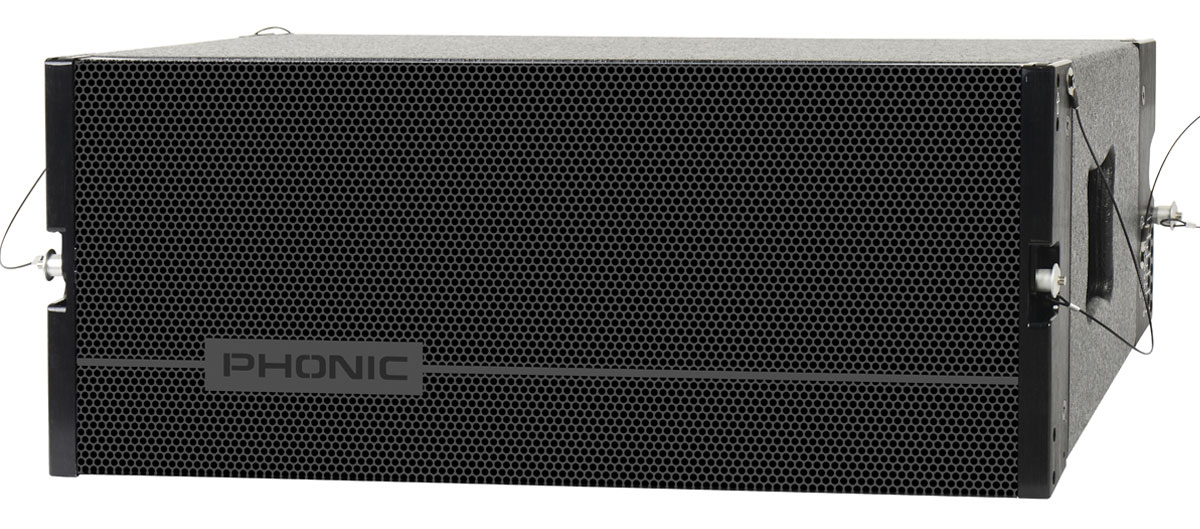

The KT-8A is a 3-way system encompassing an 8" bass-reflex woofer, 6.5" mid-range and 1.4" compression tweeter. It features a high performance multichannel digital amplifier with 1136 Watts total output, a high-end 64-bit DSP and superior AD-DA converters.

ds_KT8A_en.pdf
