KT8

kt8_1577262634


8” bass-loaded woofer, 6.5” mid-range woofer with 2” voice-coils
Two 1.4” titanium diaphragm tweeters matched with neodymium magnets
Rated power (RMS): 150 Watts (LF), 110 Watts (MF/HF)
Nominal Impedance: 16Ω (LF), 8Ω (MF/HF)
Maximum sound pressure level: 128 dB (Peak)
120° horizontal, 10° vertical dispersion pattern
Straightforward rigging system allows splay angles from 0° to 8°
Exceptionally wide frequency response: 70Hz to 19KHz (-3dB)
Bass-reflex configuration for extended low-end response
Made of sturdy, multi-layer birch plywood with tough black coating
Two water and dust resistant Neutrik NL4 connectors

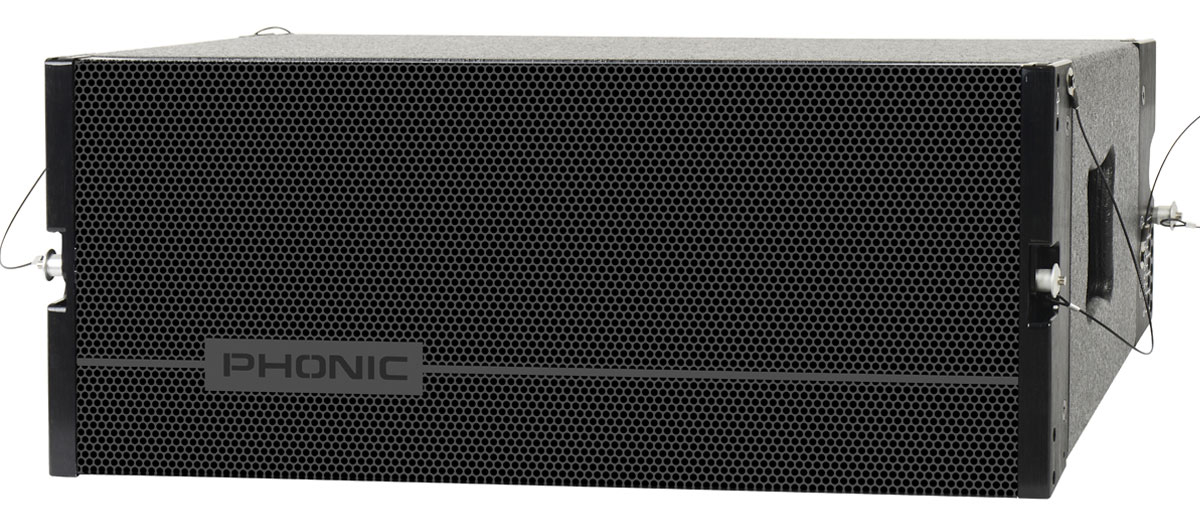

The KT-8 line array speakers were
carefully designed so as to provide phenomenal
performance in a low-weight, easily-manageable
constructions. Combined with your 2-way crossover
and power amplifiers, the KT-8 passive line array
speakers can create phenomenal sound pressure
levels and extended coverage for all manner of largescale
installations.
