Air 30

air30_pic

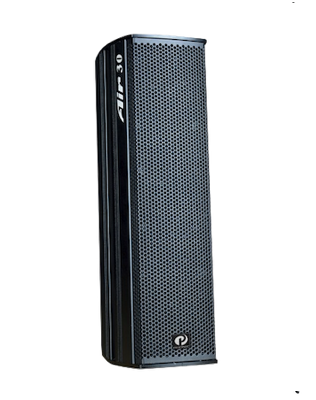

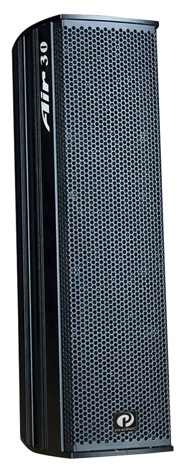

Air 30

Specification:

Driver unit:2*3.5" bass drivers and 3" paper cone driver
Frequency response:70 Hz–20 KHz(-10dB)
Frequency response:90 Hz–19 KHz(±3dB)
Sensitivity :90dB(1W@1m)
Max. sound level:118dB
Coverage angle:100oV x 100oH
Power Handling:Program 160W/ Peak 320W
Impedance:16Ω
Connector:IP65 Square flange panel receptacle and barrier strip terminals Material:1.5mm Aluminum Alloy
Dimension:330×105.6×137mm (H*W*L)
Weight: 2.6 kg

is one of the AIR series passive column
speaker. The AIR series features a compact aluminum alloy housing、modular design and powerful function. Air series includes a subwoofer and three column model. The Air 30 uses two 3.5" bass units and a 3" paper cone driver with a range of 100oH × 100oV, and the 118dB SPL makes the Air 30 more suitable for many cases. Available option for IP65
The Air 30 can be powered by the active subwoofer AirSub210. It has a built-in digital signal processor that offers different presets to cover a wide range of sound applications.

Phonic introduces the Air Series column speakers are an ideal sound solution for short to medium-range applications with demanding acoustic requirements. This new range of speakers is the result of years of application experience by PHONIC engineers. The speakers are compact and slim to deliver superior sound quality in engineering applications.

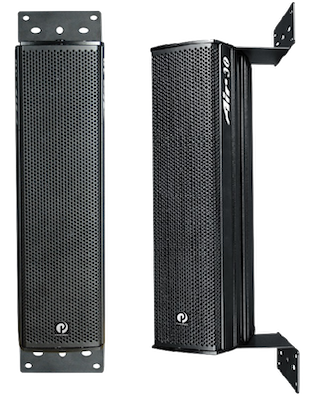

The Air30, Air50, and Air120 models are three vertical arrays sound system. Consisting of 3.5" full-band unit (0.75- inch VC) arranged vertically. All with a tweeter driver to extend the high- frequency response. A specially customized strong magnetic and rubber suspension unit for linear and consistent power processing. Paper cone are made of weatherproof paper materials. The lightweight and elegant housing features an extrusion molding aluminum-shaped material. IP65 waterproof square flange panel receptacle and barrier strip terminals on the rear panel. All models are equipped with a 2-axis adjustable wall-mounted stand that is handy for any installation.
These slim, unobtrusive speakers match the AirSub 210 subwoofer, which features two 10" long stroke bass driver units. The deep low-frequency
response is the perfect match for Air's full range frequency response. Air series are cost-effective but professional fixed installation solutions for sound engineers.


Download

ds_Air30_50_120_Sub210_en.pdf
ds_Air30_50_120_Sub210_ch.pdf
