AM 440DP

im-am440dp-front

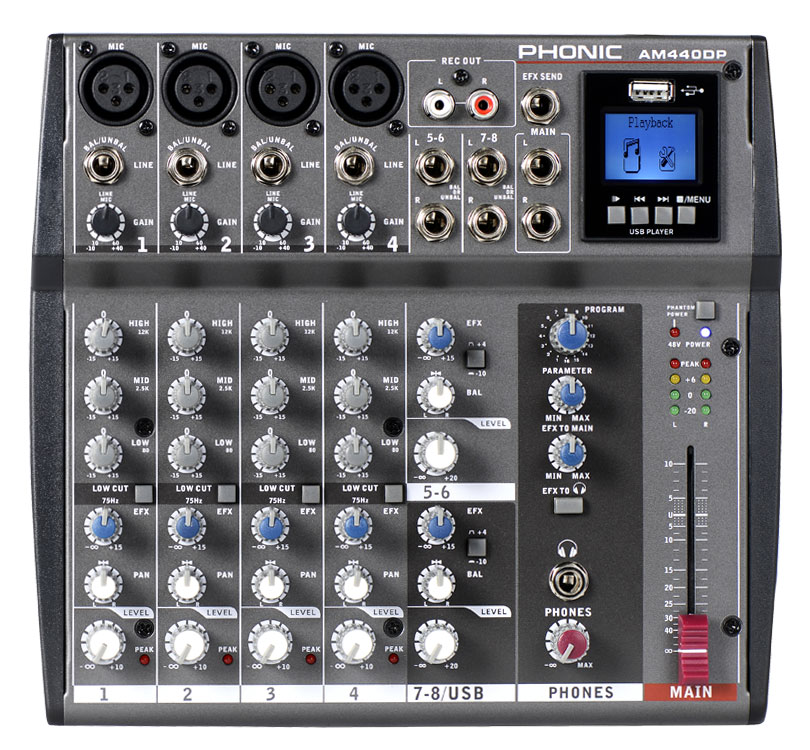

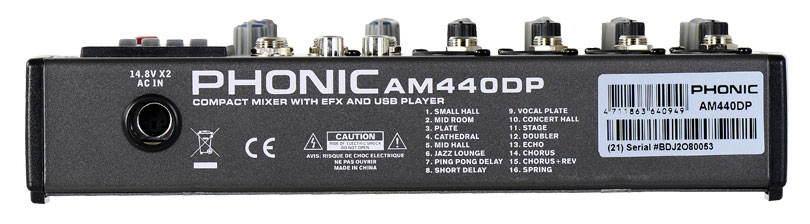

AM 440DP

4-MIC/LINE 2-STEREO INPUT COMPACT MIXER WITH DFX AND USB PLAYBACK

4 mono mic/line channels plus 2 stereo channels
USB playback of MP3 and WAV files from flash drives
32/40-bit digital stereo multi-effect processor with 16 programs + tap delay
AUX sends on each channel
75Hz low-cut filter on mono channel
3-band EQ on each mono channel
+48V phantom power on mic channels
Control Room/Phones source matrix for maximum monitor flexibility
EFX/AUX send cue for monitoring individual channel
Balanced main outputs with 60mm fader

The AM Series Mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

Download

Data Sheet (English)
User's Manual (English / Español / 簡体中文)
