AM 1621X

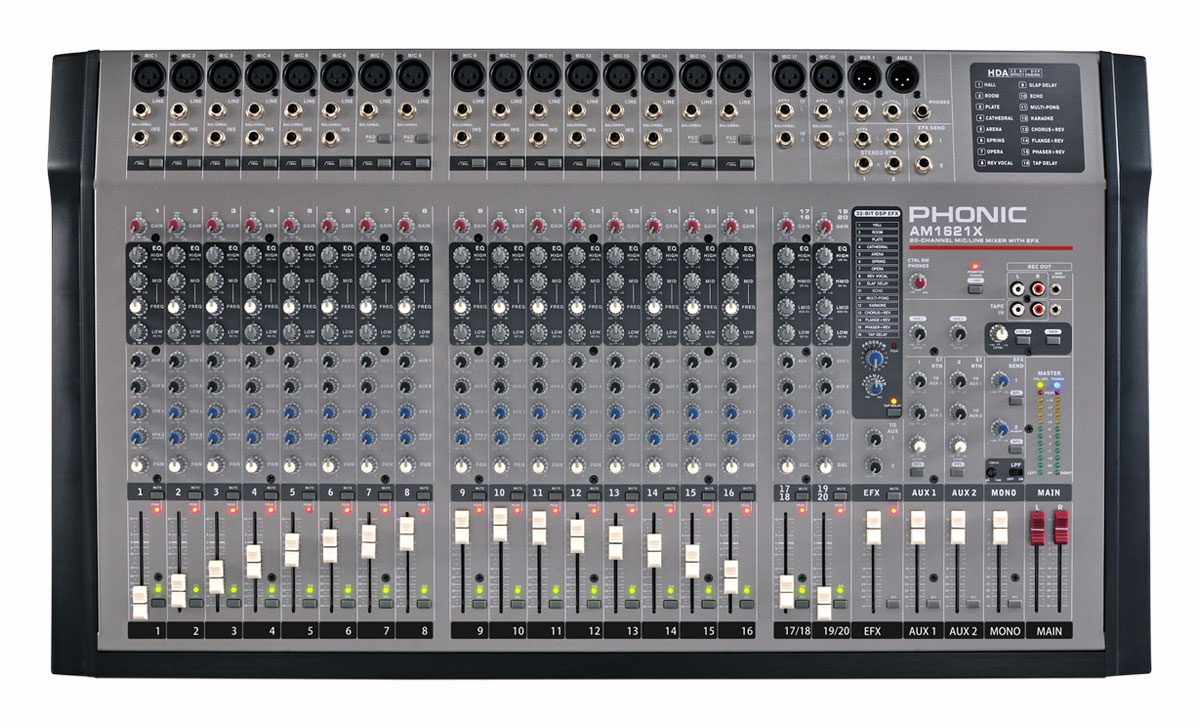

im-am1621x-front


AM 1621X

16-MIC/LINE 4-STEREO INPUT MIXING CONSOLE WITH DFX

18 quality mic preamps
Mono channels are loaded with 3-band swept-mid EQs, 75Hz (18 dB/octave) low-cut filters and phantom power
Insert points on twelve mono channels
Two stereo channels with 4-band EQ
4 AUX sends, AUX 1 & 2 with XLR and 1/4" phone output jacks
32-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch jack
2 stereo AUX returns with effect to monitor
PAD on 4 mono channels to handle difficult signals
Polarity reverse switch on two channels
Main Stereo and Mono output with XLR and 1/4" phone jacks
Mono output with variable low pass filter for subwoofer
Tape input can be routed to AUX 1 and AUX 2
Record output with trim control for level matching
Mini stereo I/O for MD, MP3 player/recorder
Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz

The AM 1621X is an easy-to-use mixing console that provides all the features you need for the project studio and live sound reinforcement. It has 18 ultra-quiet Mic preamps with high headroom and phantom power, and two stereo line channels. Mono channels feature inserts or PAD control. A 3-band EQ with swept-mid on mono channels and 4-band EQ on stereo channels gives you greater control over your mix. Four Aux sends and two stereo Aux returns can be used to connect a variety of outboard Signal Processors or to create special mixes to send to the performers' monitor Speakers. An onboard 24-bit stereo digital effects processor features 16 programs plus one main parameter control, tap control and foot switch jacks. Output is through XLR or 1/4" phone jacks and is selectable as stereo or mono output, with mono doubling as a subwoofer output. The added feature of mini stereo input/output makes this Mixer perfect for anyone connecting MP3, MD or computer audio or recording devices. The AM 1621X is ideal for houses of worship, small to medium-sized halls and project studios.

Download

AM 1621X Datasheet English
AM 1621X Manual (English+Spanish)
