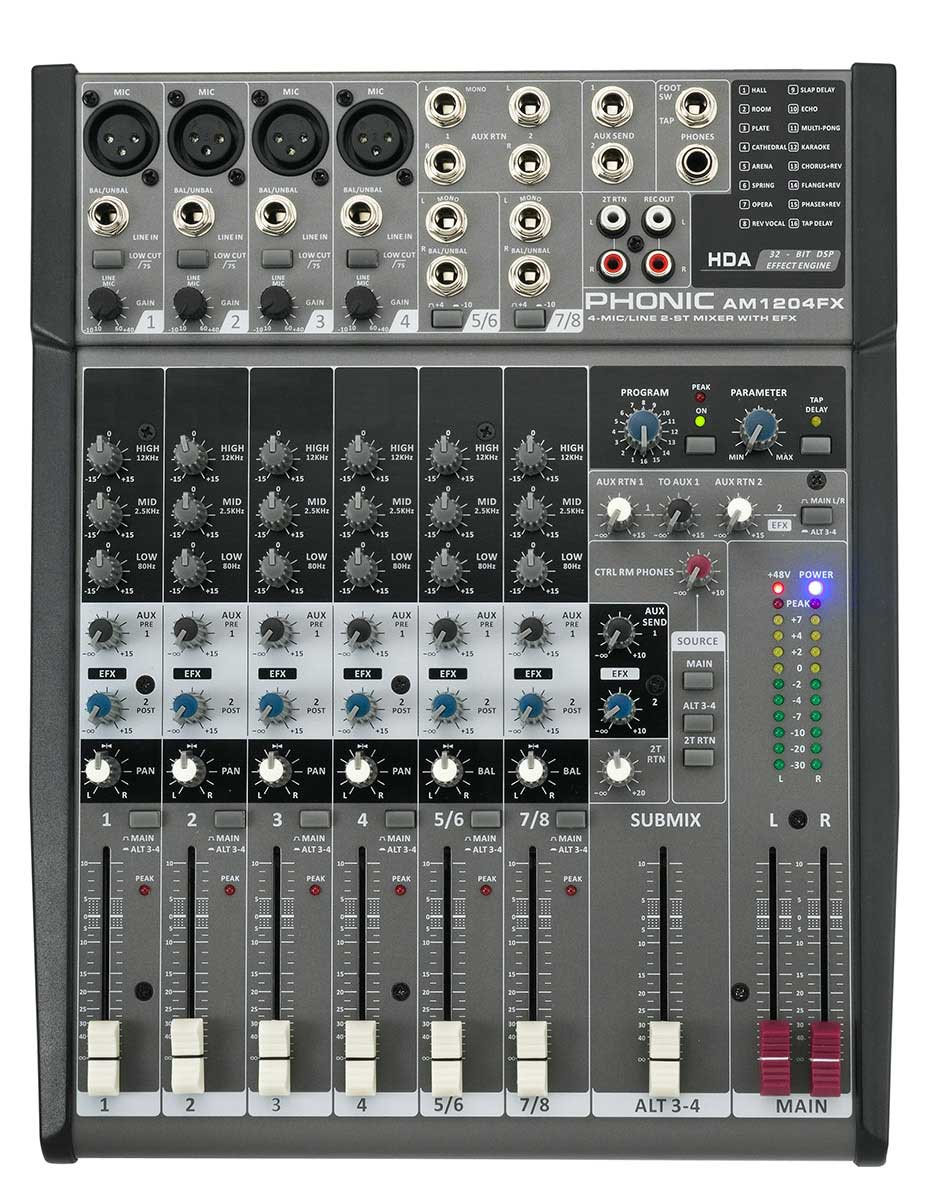

AM 1204FX

4 MIC/LINE, 4 STEREO LINE INPUT COMPACT MIXER WITH DFX

Four mono mic/line channels with two stereo line inputs
Accepts balanced and unbalanced input connections
Four of Phonic's famously low-noise preamplifiers
Plug-and-play compatibility with modern PC and Mac computers
USB interface offers 16-bit resolution at sampling rates of 48 kHz
Variable compressor on mono channels
Control room/Phones source matrix for monitor flexibility
EFX/AUX send cue for monitoring individual channels
Musical 3-band equalizer available on each and every channel
75Hz low-cut filter on mono channel for removing rumble
32-bit DFX processor with 16 presets
Parameter control for adjusting each presets individual parameter
Stereo RCA 2T Tape In and Rec Out
Global +48V phantom power
Stereo balanced XLR master outputs
ALT 3/4 mix for diverting signals from muted channels
Universal power supply, accepting 100V to 240V AC
Ideal for sub mixes, small performances and studio application

The AM1204FX compact mixers feature four mono microphone/line inputs in conjunction with two stereo line inputs for flexible input possibilities. Each channel features a super-musical 3-band equalizer, while mono channels also offer 75Hz low-cut filters for removing stage rumble and other unwanted low-frequency sounds. All AM1204FX mixers offer an addition ALT 3/4 mix that redirects muted signals from all channels to their very own mix. A universal power supply, accepting AC voltages from 100V to 240V, ensures the unit can be used globally.
