Eight Mic/Line Neutrik "Combo" input channels with inserts, compressors and low cut filters
Two stereo channels with Neutrik XLR inputs, plus two stereo line inputs
Stereo USB audio interface for PC and Mac computers (24-bit, 48 KHz)
Playback of MP3, WAV and FLAC files from TransFlash media
Internal TransFlash module for high quality stereo recording in WAV or MP3 formats
2.4GHz Bluetooth connectivity for streaming digital audio from smart-devices

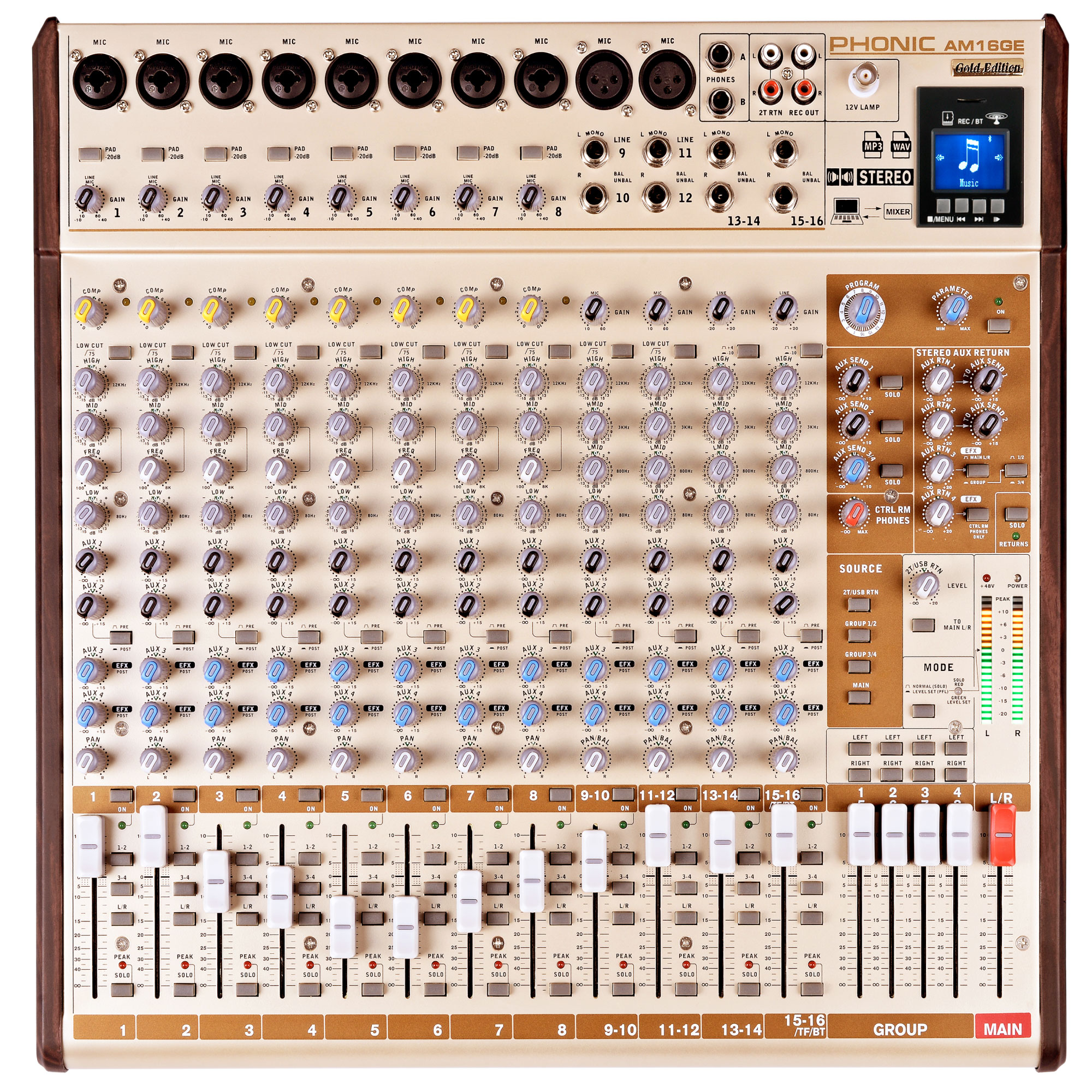

3-band, swept-mid EQ on each mono channel, 4-band EQs on stereo inputs
4 AUX sends on each channel, 4 stereo AUX returns with effect to monitor level control
32/40-bit digital effect processor with 16 effect programs and one main parameter control
4 true subgroups with main L and R routing switches
Solo feature on each input and output
Insert connectors for each input channel

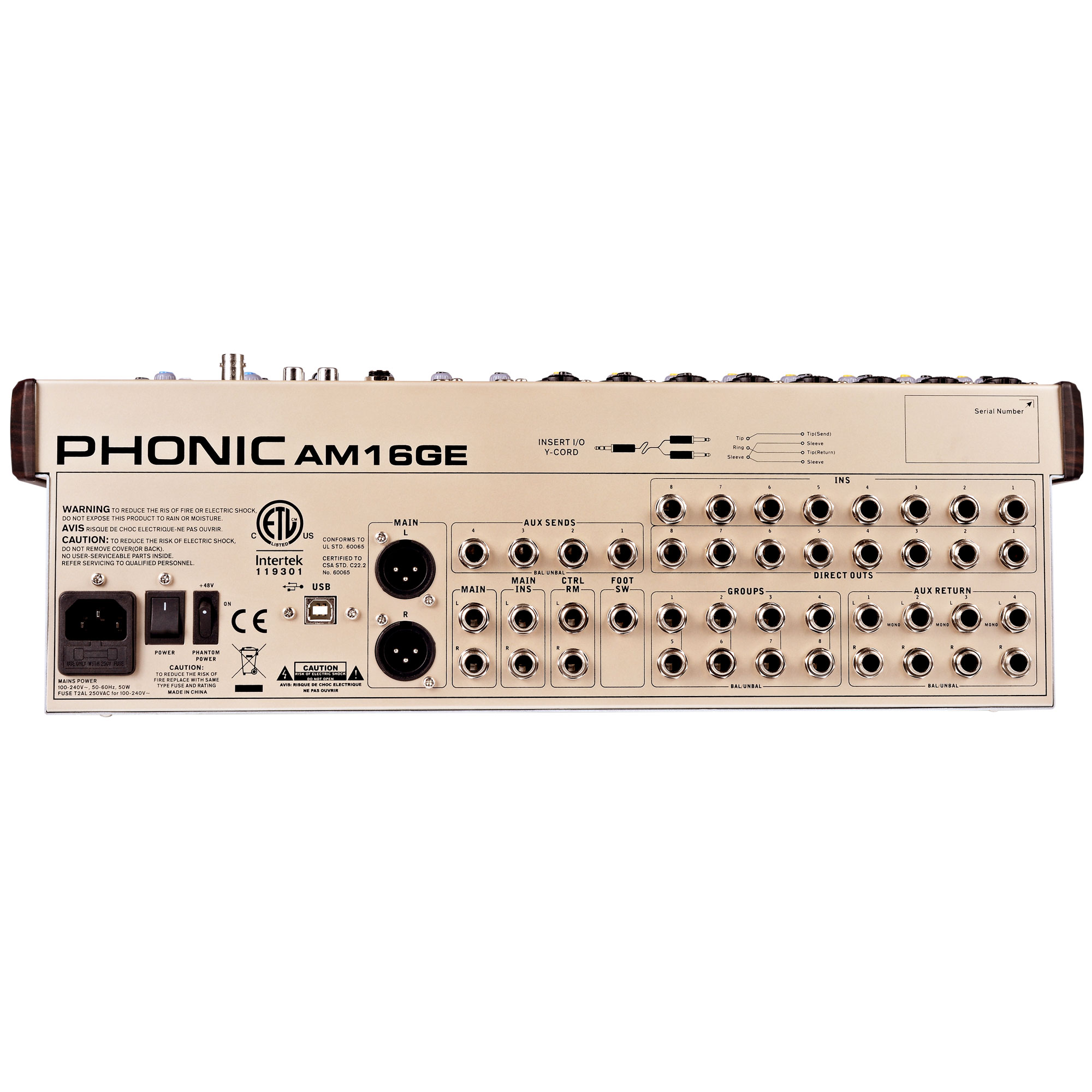

XLR and 1/4" connectors available on main L / R output plus main insert
Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz
Optional rack mounting kit (sold separately)

Phonic's all-new Gold Editions of the classic AM series of mixers offer more ways to record your audio than ever before. We begin with a stereo USB interface for sending audio to and from any modern PC or Mac computer. This allows recording and/or playback of digital audio in quality far superior to the average compact disc (24-bit, 48 KHz). A superior onboard module is also included, offering both TransFlash (TF) recording and playback in addition to Bluetooth connectivity. The TF portion allows stereo recordings to be made in WAV and MP3 formats, providing phenomenal recording quality previously unavailable without additional, external equipment. Integrated stereo recording at its finest!

The AM Gold Editions still provide many of the analog standards. Ultra low-noise pre-amps ensure high quality sound when used in project studios or in sound reinforcement. Neutrik-brand microphone input connectors (both combo and XLR) are utilized for unparalleled audio while our advanced analog circuitry ensures your audio is handled with the utmost of care. The multi-band EQ on mono channels gives you total control over your audio. The AM Gold Editions also makes monitoring the mix easy with its dual multi-segment LED level meters, EFX to monitor control and high volume headphone outputs.
