Digital Matrix Amplifiers

PHONIC introduces the DMA series digital matrix amplifiers – combining smart signal processing with a flexible modular mixing matrix and robust amplification. Sound complex? It’s not, because all routing and processing is adjusted through the simple yet intuitive software. The DMA series provides racks-full-o-gear in a modest 2U construct. Combining many great products into a simple design, the DMA series simplifies your installation and saves you money. Whether designing or installing systems in auditoriums, restaurants, houses of worship, boardrooms, courtrooms or performance spaces, PHONIC has a DMA matrix amplifier that will fit your exact requirements.

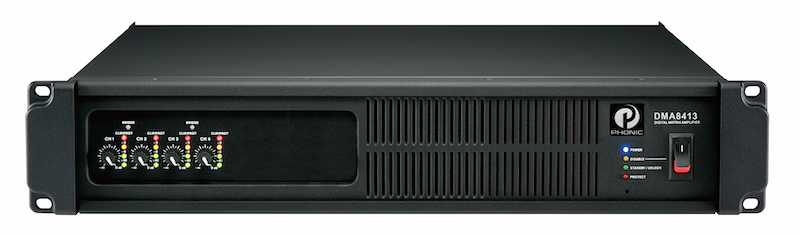

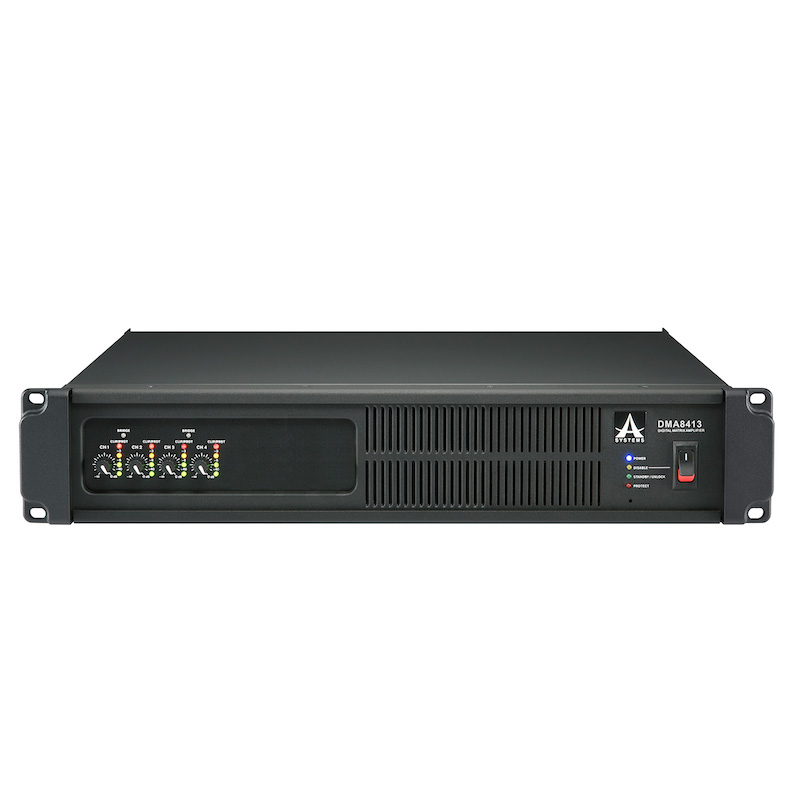

DMA8413 / DMA8413D

8x4 520 Watt Digital Matrix Amplifier
4-channel amplifier – 130 watts per channel
4 ohm and constant voltage models available (70V or 100V)

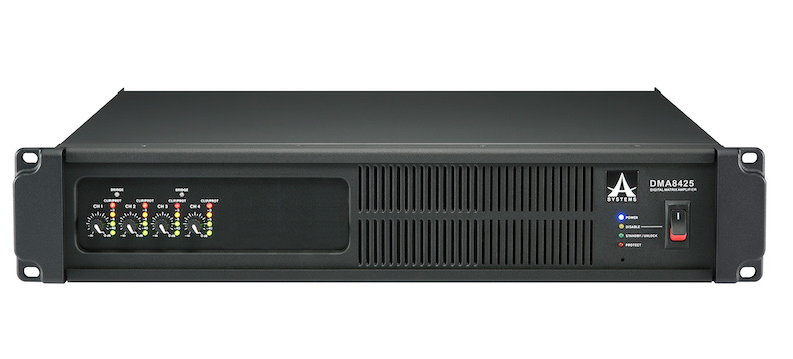

DMA8425 / DMA8425D

8x4 1000 Watt Digital Matrix Amplifier
4-channel amplifier – 250 watts per channel
4 ohm and constant voltage models available(70V or 100V)

Power OutputPer ChannelDante
8Ω / 4Ω70V/100V
DMA8413 (8x4) 80W / 130W130WOptional
DMA8425 (8x4) 150W / 250W250WOptional
DMA8813 (8x8)80W / 130W130WOptional
DMA8825 (8x8)150W / 250W250WOptional

8-in x 4-out sophisticated matrix mixing
8 built-in mic preamplifiers
Dual RCA and balanced euroblock inputs
Stereo inputs summed to mono
Four 2-pin euroblock speaker outputs
Stand-alone control with monitor and mouse with VGA and USB connectors
Remote user control through PC
44.1 kHz or 48kHz sample rate
24-bit A/D D/A conversion
+48V phantom power
Event scheduling

DSP Processing:
• Automatic Mixing
• Compressor/Limiter • Feedback Silencer
• 31-band GEQs
• 4-band PEQs
• Crossover
• Automatic level Control • Program Intuitive Ducker
SD card slot
AES / EBU input and output
Word Clock input and output

External control via Asystems wall remotes
Password protected user accounts
Scene recall feature for recalling all system settings
Signal generator (white noise, pink noise, sine wave)
Real-time error notifications via email reporting function
DMA8413D and DMA8425D feature 4x4 Dante Expansion option
