Xtrix 4100

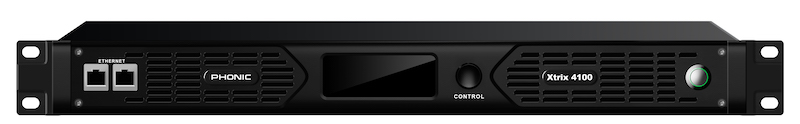

xtrix4100-front


Xtrix 4100

4-channel, 1000W 8Ω Class-D Power Amplifier

The input delay of each channel is 30ms, the output delay is 20ms, and the step is 0.01ms;
Audio input level matching +-18db;
4x4 audio route mixing, mixing ratio - 80dB ̴ + 18dB;
8-segment input parameter EQ, 5-segment output parameter EQ, high-low pass filter;
Support FIR filters of order 512 and below;
Volume, mute, phase adjustment, and mode selection;
Output average value, peak limiter;
Save / retrieve parameters between machines;
Speaker parameter configuration;
User / parameters / factory permission setting.

The Xtrix series digital power amplifiers feature constant resistance and constant voltage output,
an integrated DSP, an integrated switch, support for the UDP protocol, and the ability to monitor the
power amplifier through an ethernet network cable.
The Xtrix series power amplifiers utilize the company's proprietary multi-loop regulation technology and boast
excellent technical specifications, particularly the power amplification technology optimized for low impedance
and high current, which results in a power amplifier with a greater than 90% efficiency and excellent stability.
The switching power supply utilizes active PFC and soft switching technology.
