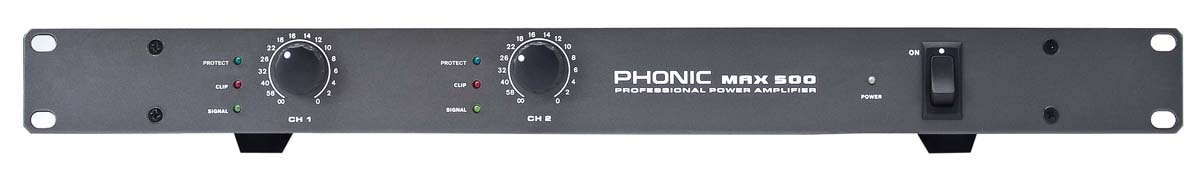

MAX 500

240 WATT POWER AMPLIFIER

Output power: 120W @ 4 ohms per channel, 90W @ 8 ohms per channel
High damping factor provides exceptional loudspeaker motion control
Detented level controls for precise repeatability
Convection cooling system dissipates heat through the heat sink and chassis for noise-free operation
High-current toroidal transformers for greater power and low noise
Balanced XLR and 1/4" phone jack inputs
Binding post outputs
Front mounted gain controls for easy access
Signal and Peak LED indicators to monitor performance
Short circuit, thermal, subsonic, RF protection, output DC offset
Power on/off muting
Grounding / Floating switch to avoid grounding loop
482 x 44 x 340 mm (19" x 1.75" x 13.3") \ 7.85 kg (17.3 lbs)

Phonic's MAX 500 Power Amplifier provides 120 Watts of power per channel at 4 ohms in a single rack space - ideal for medium-size venues and for monitoring purposes. MAX 500 features ground switches, and the option to choose between stereo or parallel operating modes. Input to the MAX 500 amp is achieved via XLR or phone jack, and output is achieved through binding posts, making the MAX series of amplifiers ideal for real world application.
