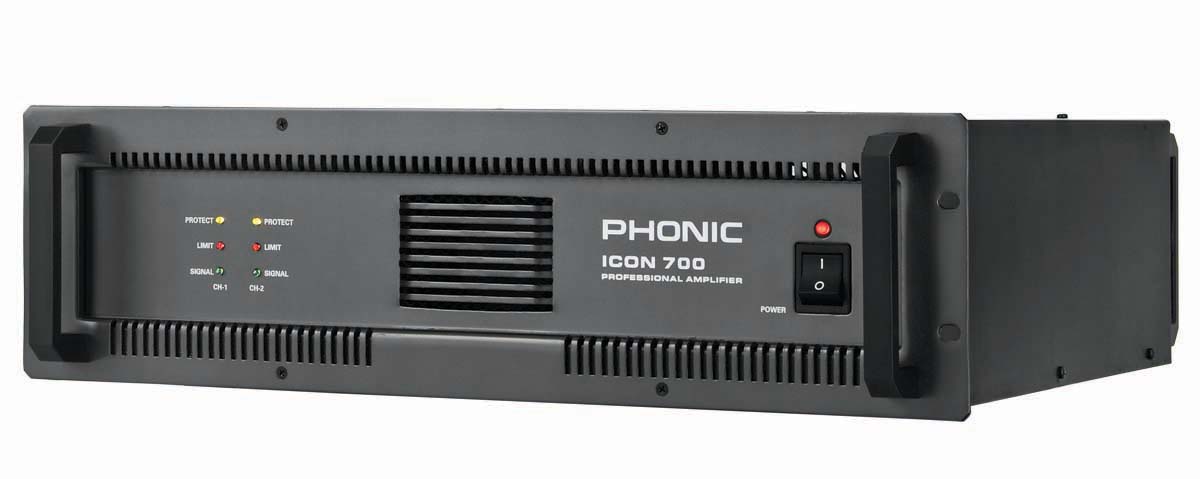

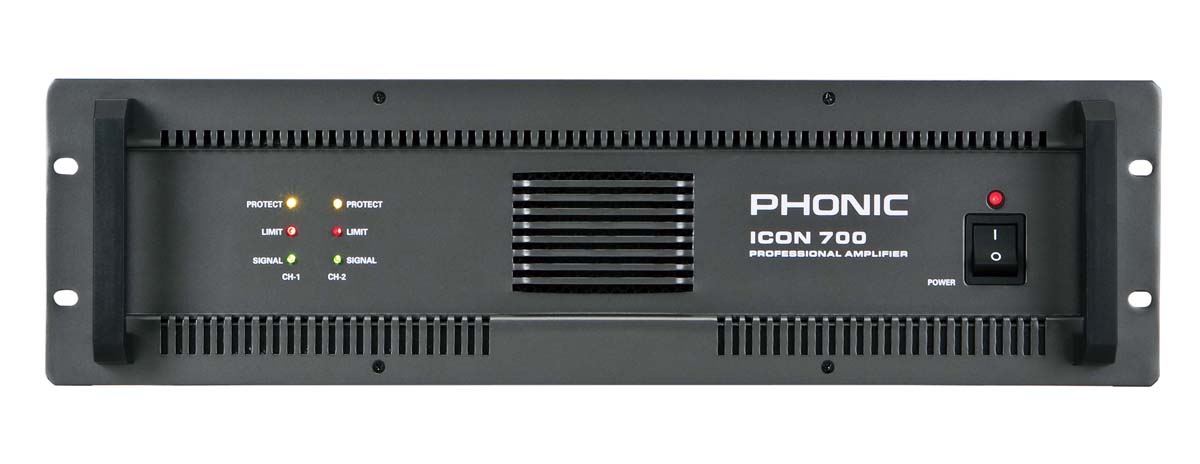

ICON 700

im_icon700_front13129634044e423b4cbe43c


ICON 700

700 WATT CONTRACTOR POWER AMPLIFIER

Output power: 2 x 550W at 2 ohms, 2 x 350W into 70V or 100V

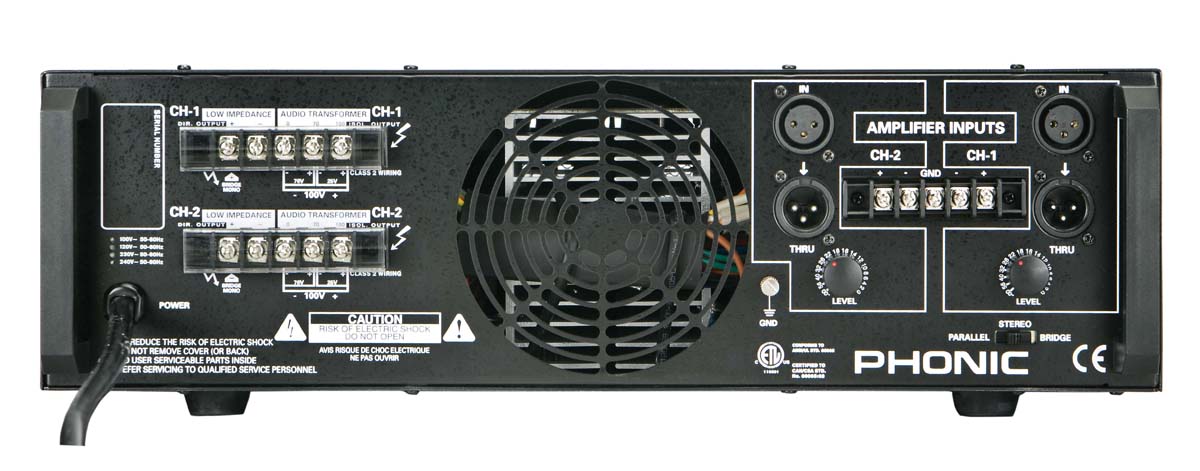

XLR and barrier strip input connectors
Output via covered barrier strips
Automatic dual-speed, high-efficiency cooling fan
Full short-circuit, temperature and DC offset protection
Toroidal output transformers provide full electrical isolation and meet worldwide safety standards

ICON Series power amplifiers are designed with the needs of sound contractors in mind. Barrier strip outputs enable 25V, 70V and 100V Line operation. As well as the connection to standard low impedance speakers. Each amplifier channel has a separate toroidal secondary transformer that provides full electrical isolation and ensures maximum audio separation. Features like power up muting, full short-circuit, temperature, DC offset protection and a built-in 45 Hz subsonic filter, combine to make the Icon Series an attractive, cost effective solution for any audio installation.
